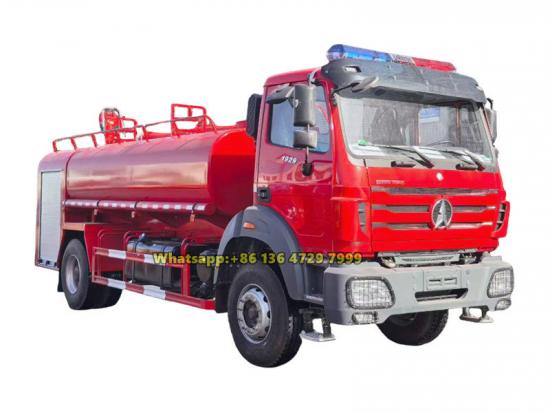

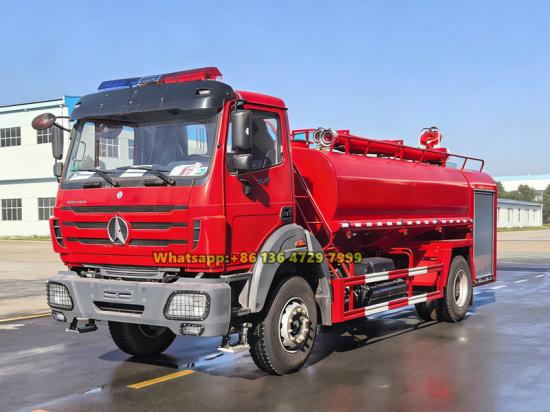

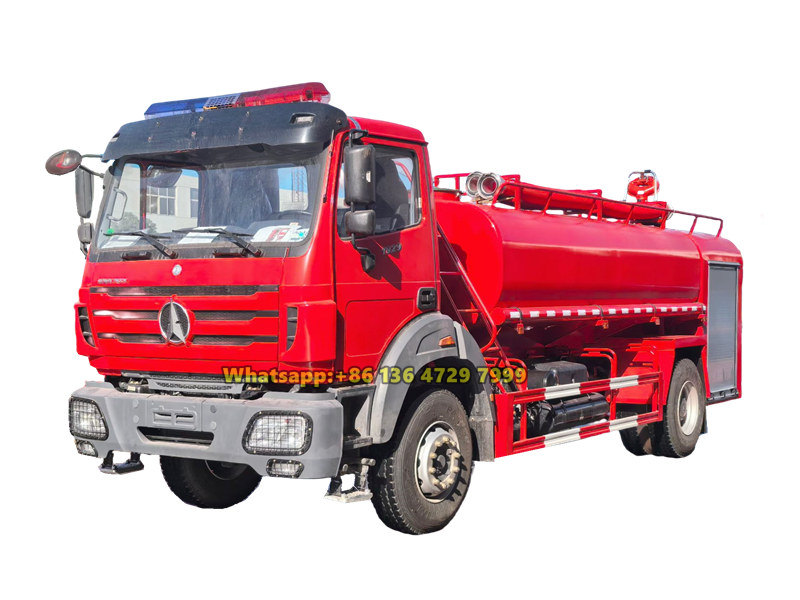

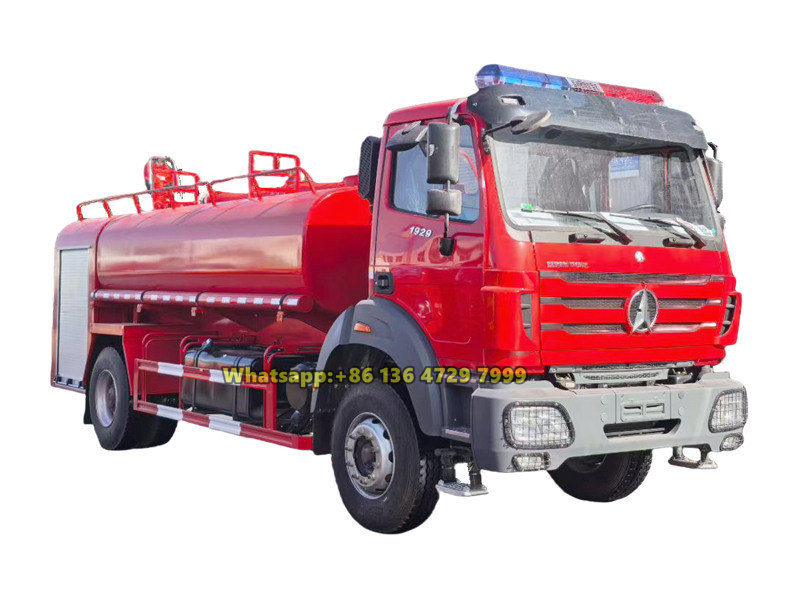

Египетская пожарная машина Beiben объемом 10000 л.
Водовоз Beiben 10000L — это универсальное транспортное средство для экстренного реагирования, созданное на базе шасси Beiben 4×2. Оснащенный двигателем мощностью 290 лошадиных сил, он обеспечивает превосходную мобильность и гибкость. Он имеет большой резервуар для воды объемом 10 000 литров, профессиональный пожарный насос и пожарный монитор, что обеспечивает автономное тушение пожаров и возможность подачи воды на большие расстояния. Это транспортное средство может быстро забирать воду из природных источников для тушения пожаров, а также функционирует как высокопроизводительное транспортное средство для перевозки воды, что делает его особенно подходящим для тушения пожаров и экстренного водоснабжения в городских районах, лесах и других узких или засушливых местах.
Рыночная цена:
$45500Работоспособность:
10000 litersТип кабины:
NG80B short cabinРазмеры (мм):
8100×2500×3200Система привода:
4×2Колесная база (мм):
4800Мощность двигателя:
290HP/WP10.290E32Коробка передач:
9JS150AЗамечание:
4×4 drive, stainless steel tank is optional

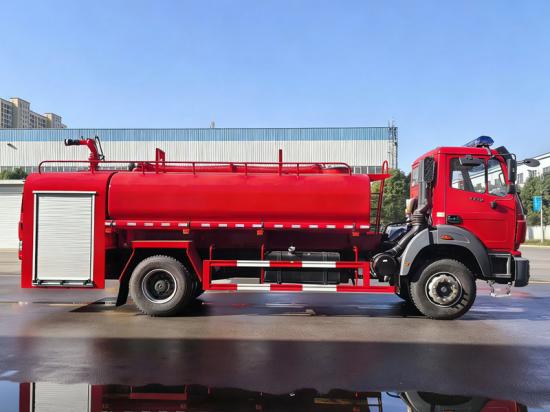

Водовоз Beiben 10000L — это многофункциональное специализированное транспортное средство, объединяющее в себе возможности пожаротушения и транспортировки воды. Построенный на шасси Beiben 4×2, он отличается компактностью и высокой маневренностью, оснащен двигателем Weichai мощностью 290 лошадиных сил, развивающим максимальную скорость 90 км/ч, что позволяет легко передвигаться по узким дорогам. Он оборудован 10-тысячелитровым резервуаром для воды из углеродистой стали, пожарным насосом CB10/40 и пожарным монитором PS8/48W, обеспечивающим дальность струи воды более 65 метров, что позволяет ему самостоятельно выполнять операции по тушению пожаров и дальнему водоснабжению.
The advantage of this
Beiben water fire tender
lies in its large 10,000-liter water tank, which ensures extended operational endurance. Additionally, it comes standard with professional fire pump and monitor, providing comprehensive firefighting capabilities. It can efficiently draw water from natural sources for firefighting and serve as a critical water transport and supply unit in water-deficient areas, achieving multiple functions with a single vehicle. Its outstanding overall performance makes it a reliable asset for firefighting in urban streets and forests, as well as various emergency rescue scenarios.
CEEC factory
is authorized supplier on beiben fire trucks,
guarantee all beiben fire resuce trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Built on Beiben 4×2 heavy-duty chassis, strong load capacity

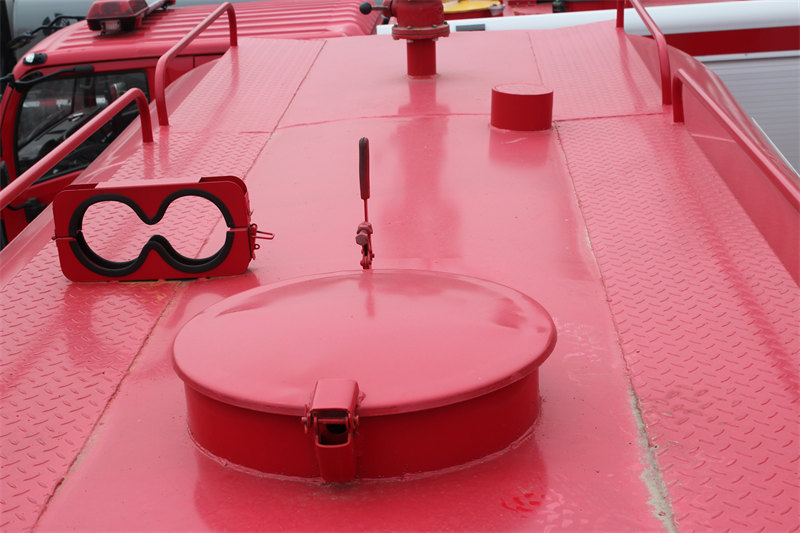

▶ Tank Volume: Tank capacity up to 10000 liters, with manhole cover on top
▶ Tank construction: Made of high-strength carbon steel, 5mm thickness, anti-rust treatment inside
▶ Fire pump: Intalled at rear of the vehicle, model CB10/40, flow rate 40L/s
▶ Fire monitor: Installed at top of the tank, model PS8/48, water range up to 65m
» Ⅱ. Product Specifications:
|
Beiben 10000 liters water tender truck specifications |
||
|
Chassis |
||
|
Cabin |
Beiben NG80B short cabin |
|
|
4x2, left hand drive |
||
|
With air conditioner, 2 seats, with USB, radio, loud speaker |
||
|
Vehicle Main Dimensions |
Overall dimensions (mm) |
8100 × 2500 × 3200 |
|
Wheel base (mm) |
4800 |
|
|
Front/rear overhang (mm) |
1260/2320 |
|
|
Approach angle ( ° ) |
19 |
|
|
Departure angle ( ° ) |
11 |
|
|
Weight in KGS |
Gross Vehicle Weight (kg) |
19000 |
|
Curb Weight (kg) |
8600 |
|
|
Payload (kg) |
10000 |
|
|
Max. driving speed(km/h) |
90 |
|
|

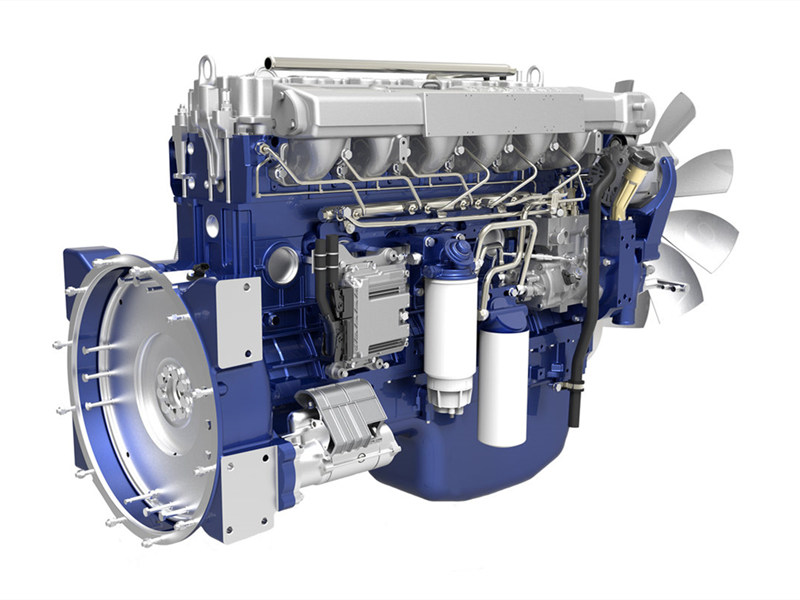

Engine |
Brand |
WEICHAI |
|
Model |
WP10.290E32 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Displacement |
9726 ml |
|
|
Max. output power |
213 kW |
|
|
Horse power |
290HP |
|
|
Rated speed |
2200 rpm |
|
|
Max. torque |
1160 N.m |
|
|

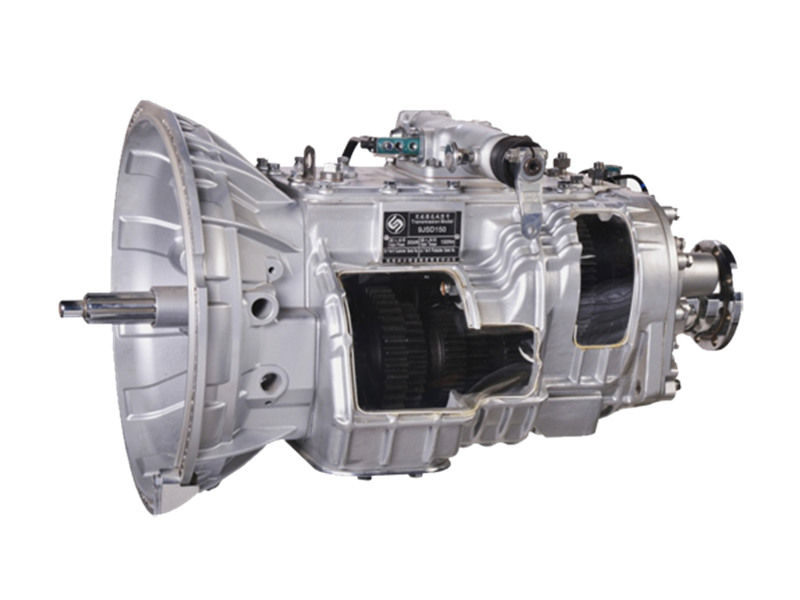

Gearbox |
FAST, 9JS150A, 9 Forwards gear & 1 reverse gear |
|
|
Tire |
10.00R20, 6 pcs+1 spare tire |
|
|
Axle load |
Front axles 7500kg, rear axle 13000kg |
|
|
Brakes |
Service: dual circuit air brakes Emergency/Parking: spring potential brake Auxiliary: EVB (optional ABS) |
|
|
Upper-body parameters |
||
|
Water tank volume |
10000 liters |
|
|
Manhole in the tank |
DN450 |
|
|
Thickness |
5mm |
|
|
Material |
Carbon steel |
|
|
Standard configuration of the tank |
Equipped with fire pump
|
|
|
Fire pump |
||
|
Model |
CB10/40 |
|
|
Type of pump |
Centrifugal pump |
|
|
Rated working pressure |
1.0 Mpa |
|
|
Water flow rate |
40L/S @ 1.0MPa |
|
|
Maximum suction depth |
7m |
|
|
Diversion device |
Self-contained slide pump |
|
|
Diversion time |
Maximum depth of suction < 50s |
|
|
Fire monitor |
||
|
Model |
PS8/40W |
|
|
Rated Flow |
40 L/s |
|
|
Rated working pressure |
0.8 Mpa |
|
|
Max. working pressure |
1.0 Mpa |
|
|
Water Range(m) |
≥ 65 m |
|
|
Rotation angle |
Horizontal: 0~360 ° |
|
|
Pipe system |
||
|
Pipe Line inlet |
2 inlet, φ125 inlet in the pump |
|
|
Pipe Line outlet |
2 outlet, φ65, at the back of pump |
|
|
Firefighting Equipment |
||
|
Fire electric siren |
1 Nos |
|
|
Emergency rotation lamp |
1-Nos |
|
|
Fire axe |
1-Nos |
|
|
Fire hook |
1-Nos |
|
|
Fireman ladder |
1-Nos |
|
|
Jet&spray nozzle |
1-Nos |
|
|
Jet nozzle |
1-Nos |
|
|
Fire hoses (b/s system) (65mm, 20m) |
4-Nos |
|
|
Suction pipe (length 4m) |
2-Nos |
|
|
Water filter (φ100, metal) and guide rope |
2-Nos |
|
|
Suction pipe wrench (100mm) |
2-Nos |
|
|
Fire hydrant wrench |
2-Nos |
|
|
Fire extinguisher(3kg) |
2-Nos |
|

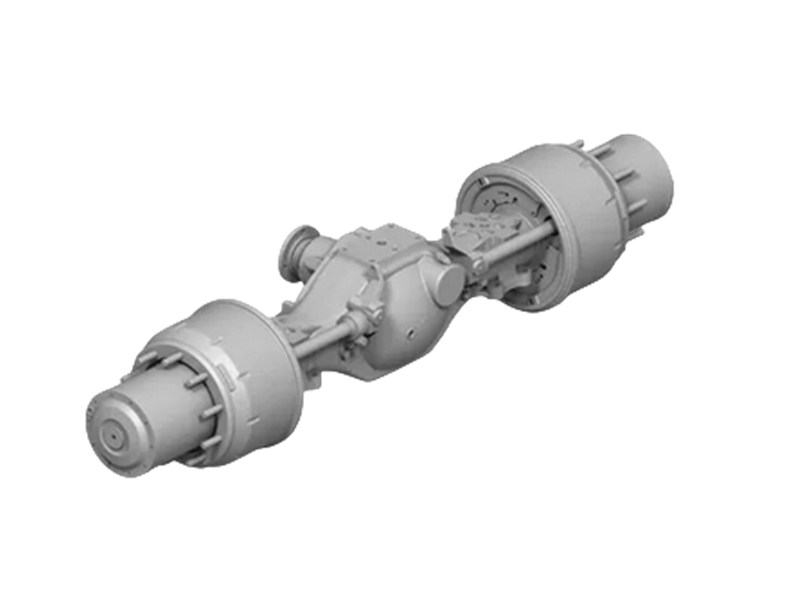

» Ⅲ. Chassis Advantages:
» Ⅳ. Upper Body Features:

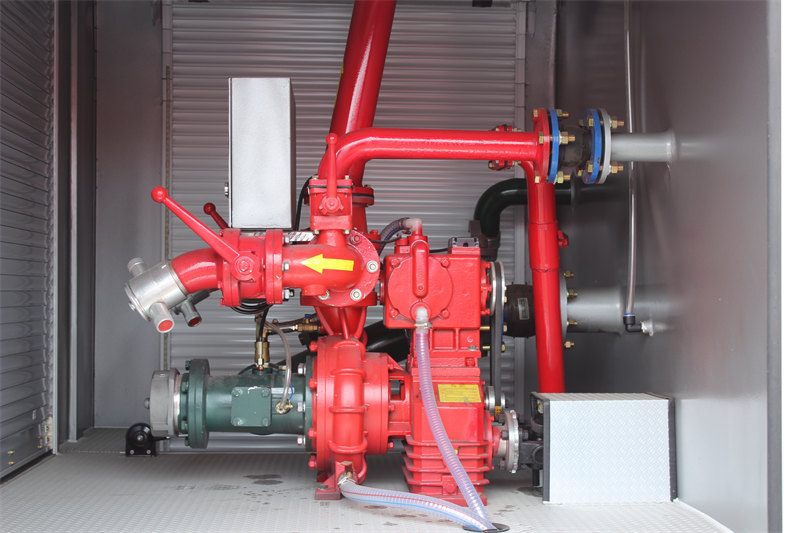

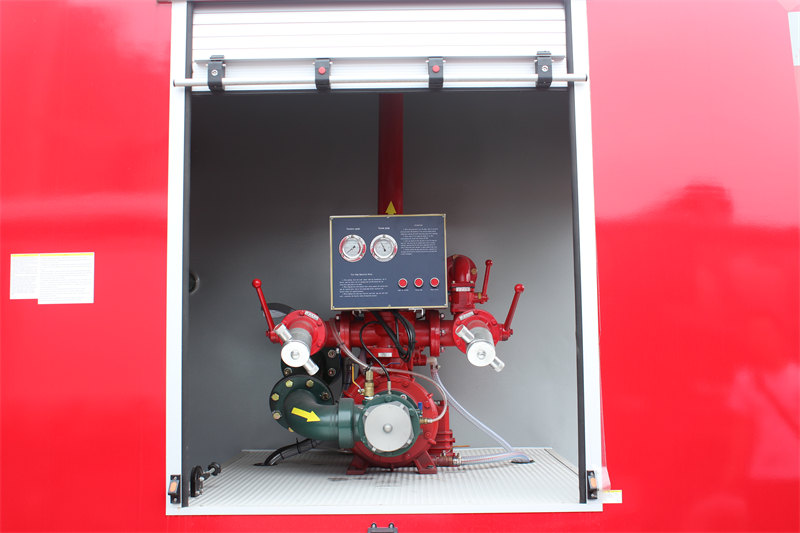

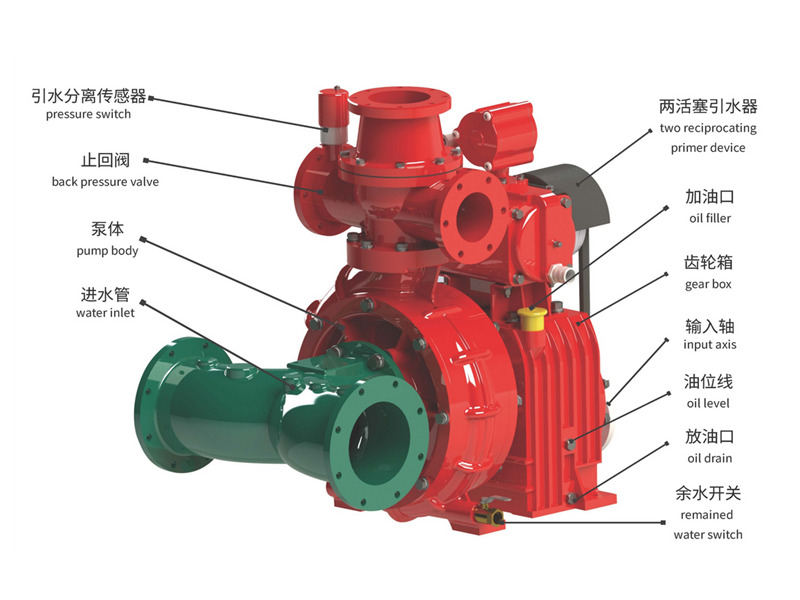

Fire pump
|
Model |
Work condition |
Flow rate (L/S) |
Outlet pressure (Mpa) |
Rated speed (r/min) |
Suction depth (m) |
|
CB10/40-XZ |
1 |
40 |
1 |
3080±50 |
3 |
|
2 |
28 |
1.3 |
3360±50 |
3 |
|
|
3 |
20 |
1 |
2990±50 |
7 |
Fire monitor
Model: PS8/40W

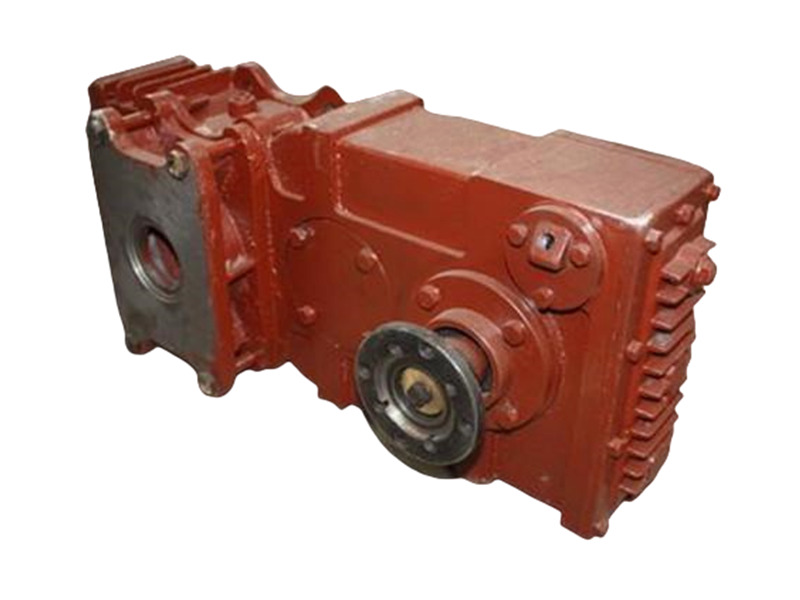

Sandwich PTO
Type:
Sandwich type
Control method:
electric control
Cooling method:
Forced adjustable water cooling
Lubrication method:
Splash oil lubrication

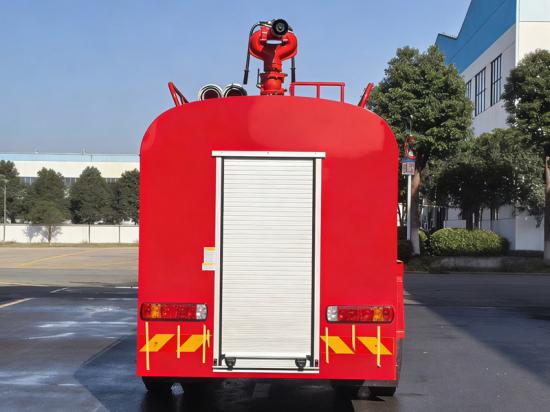

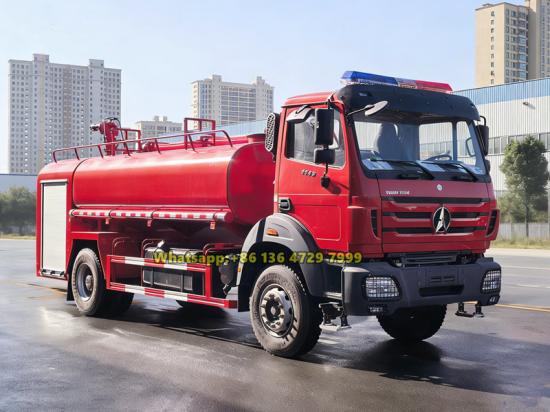

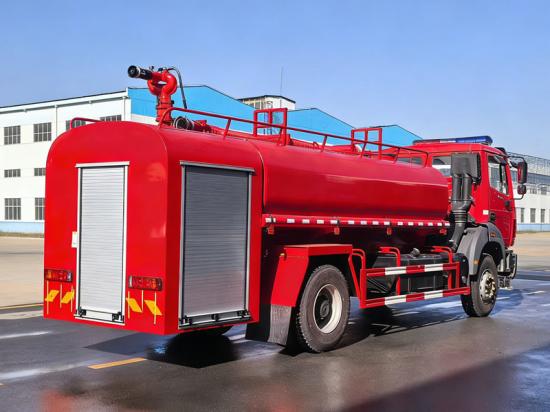

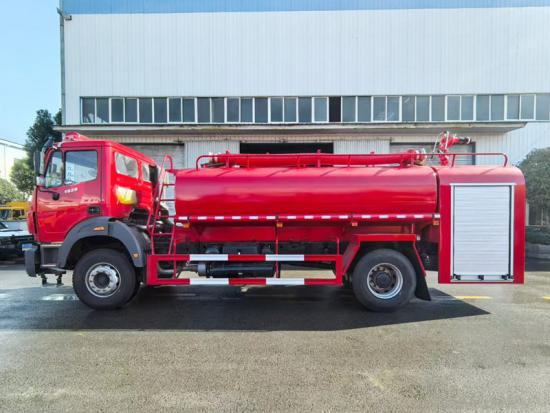

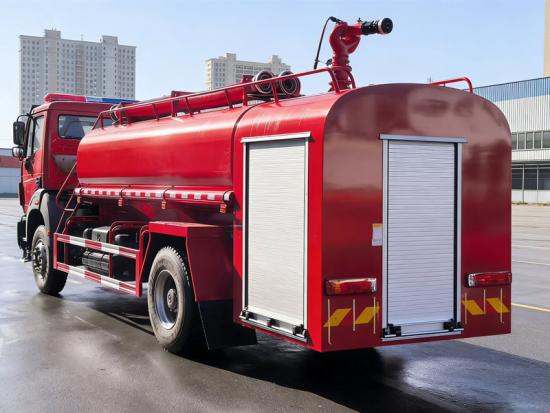

» Ⅴ. Product Details:

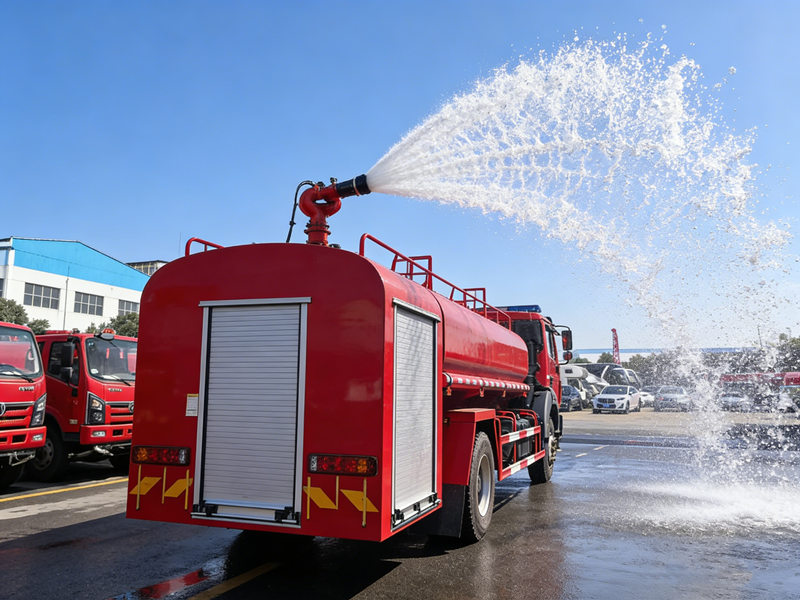

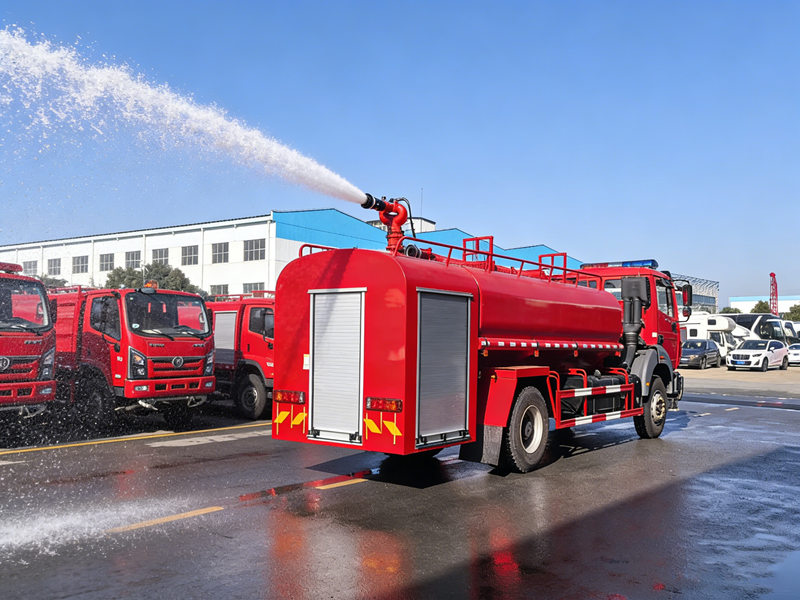

» Ⅵ. Beiben Water Tender Testing:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive firefighting trucks for option
2. Factory direct sale, supply Beiben tanker fire trucks with capacity 5000~20000 liters
3. Foam system, dry powder system can be customzied for different type of fires
4. Carbon steel, stainless steel, PP tank material is optional.
