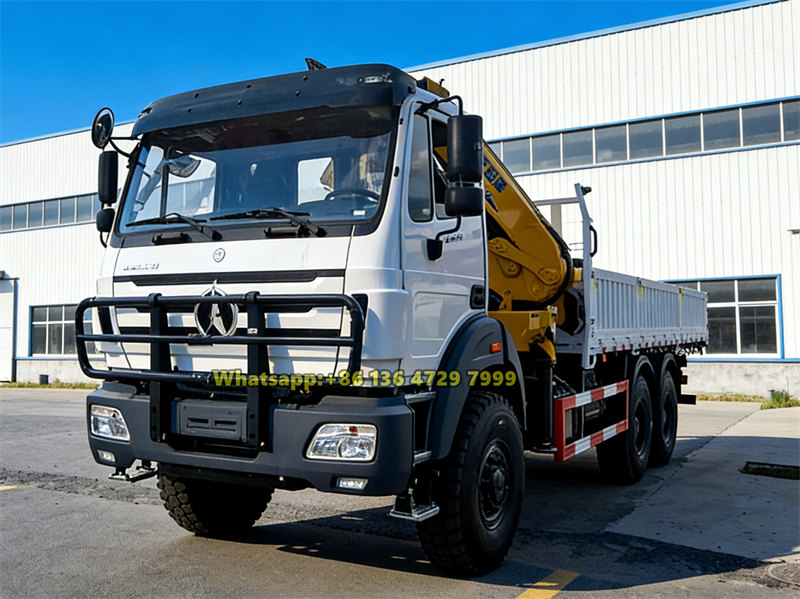

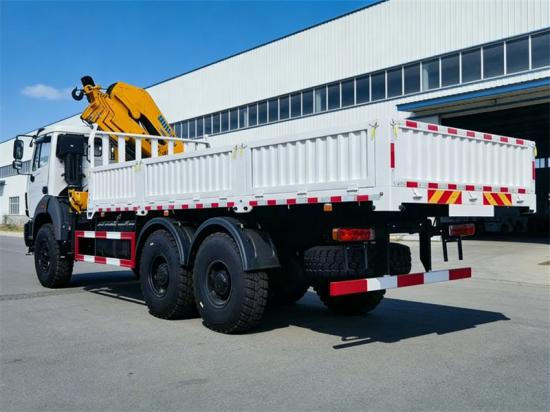

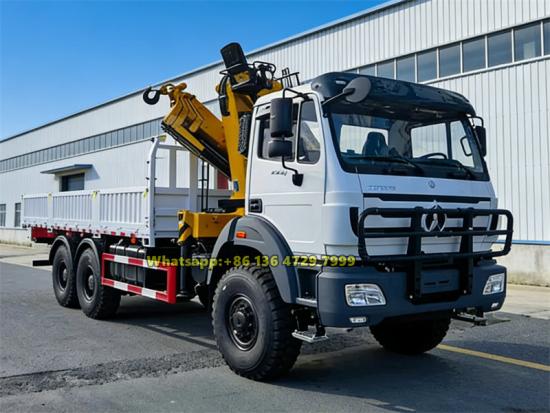

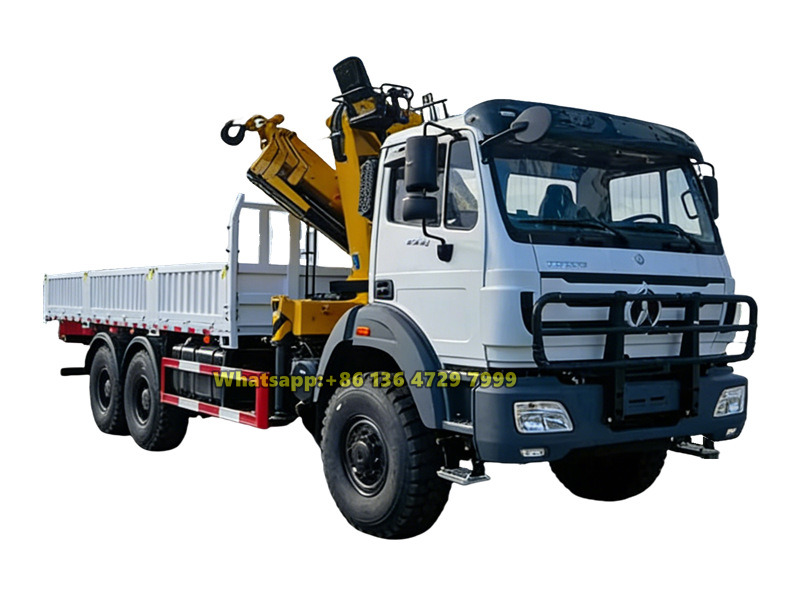

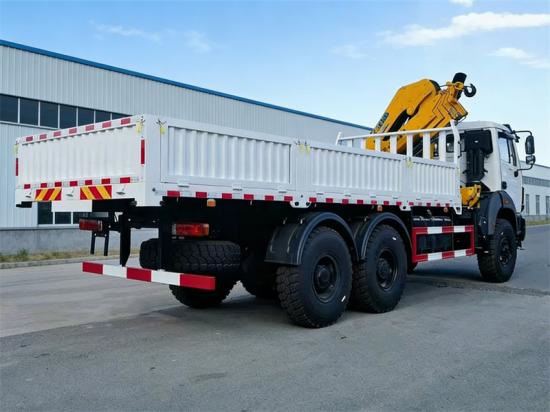

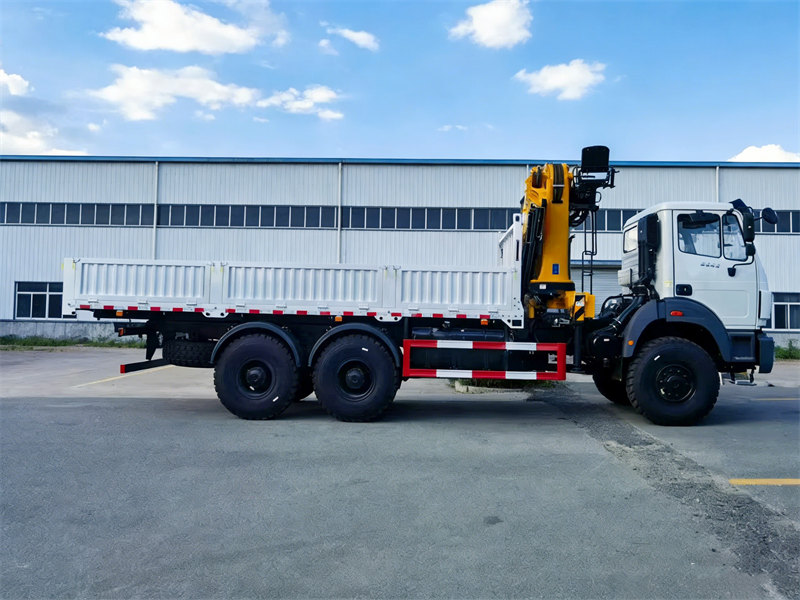

BEIBEN 6x6 truck mounted 10Ton XCMG crane

Emission standard

EUR 3

Vehicle model

CEECJ5260SQ

Chassis brand

Beiben

Driving Type

6×6, left hand drive

Crane lifting capacity

10000 kg

Dimensions

Wheelbase(mm)

4450+1450

Overall Dimension(mm)

10500×2500×3850

Cargo box dimension(mm)

7000x2500x600

Weight parameters

GVW(kg)

26,000kgs

Curb weight(kg)

14,500kgs

Rated load weight(kg)

11,500kgs

Chassis parameter

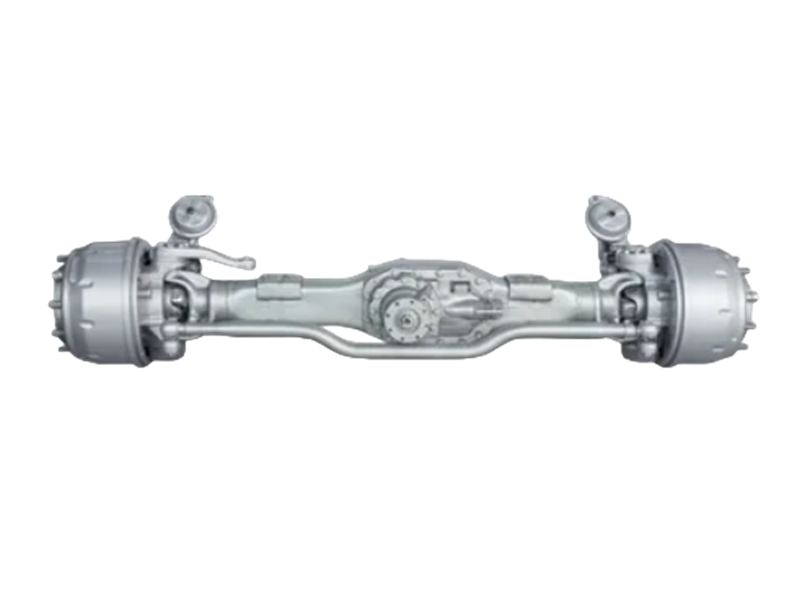

Front axle

7000 kg, driving axle, differential lock

Rear/middle axle

13000kg+13000kg, double reduction driving axle, differential lock

Front wheel track (mm)

1995

Rear wheel track (mm)

1800/1800

Front/rear overhang(mm)

1515/3085

Approach angle (°)

23

Departure angle (°)

11

Max speed(km/h)

80

Suspension

Leaf spring suspension, front 10 pcs, rear 13 pcs

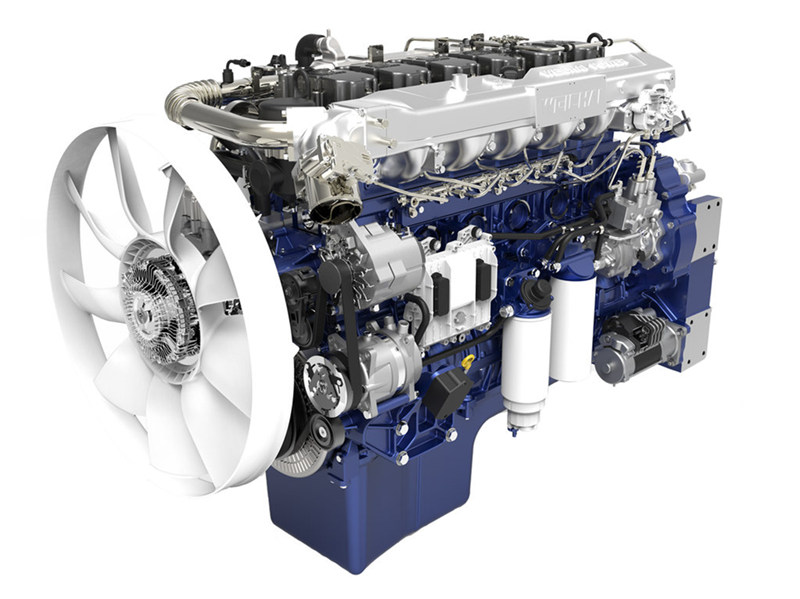

Engine performance

Brand

Weichai

Engine model

WP12.420E32

Engine type

Straight in-line, 6 cylinders, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine

No. of cylinders

Straight-6 cylinders

Displacement(L)

11.596 L

Max. Output (KW)

235kw (320hp)

Fuel type

Diesel

Max. output (kw/Ps)

309kw/420 ps

Rated speed (rpm)

2100 rpm

Max. torque (N.m)

1750 N.m

Fuel tank (L)

400

Tires

Tire specifications

14.00R20

Number of tires

6 pcs and one spare tire

Drive Line

Clutch description

¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance

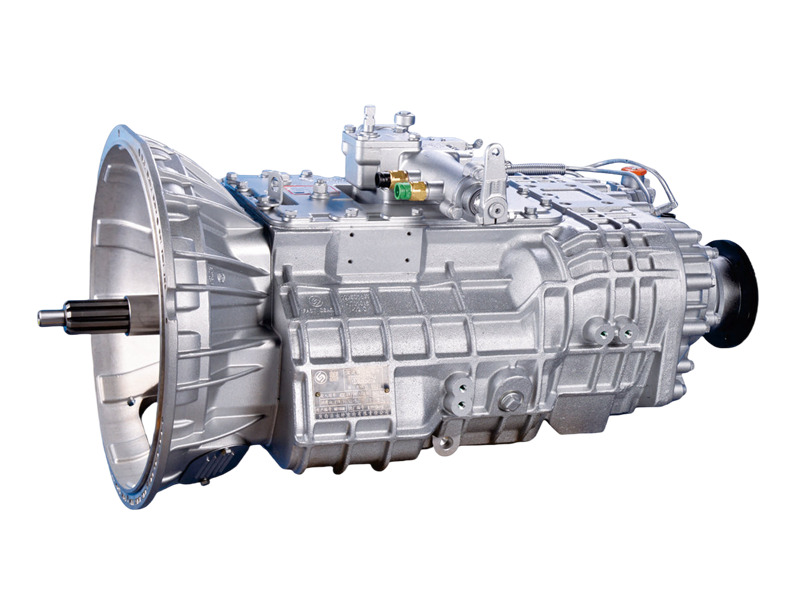

Transmission

FAST 12JS200T, 12 forwarders, 2 reverse gear, synchronous meshing, manual

Braking system

Service brake : Brake gap can be adjusted automatically double circulation air brake system
Assistant brake : WEVB(Engine exhaust brake)
Park brake : Spring brake effect to middle and rear tires

Suspension system

Front axle

Semi-elliptic leaf springs shock absorbers

Rear axle

Torsion bar semi-elliptic leaf springs

Electrical Equipment

Voltage

24V

Batteries

2X12V/135Ah

Starter

6.2Kw/24V

Cab description

NG80 cab long cab, cool and heating air-conditioner, Hydraulic suspension driver's seat, TAS85 steering wheel , With FM/AM radio player, USB interface,

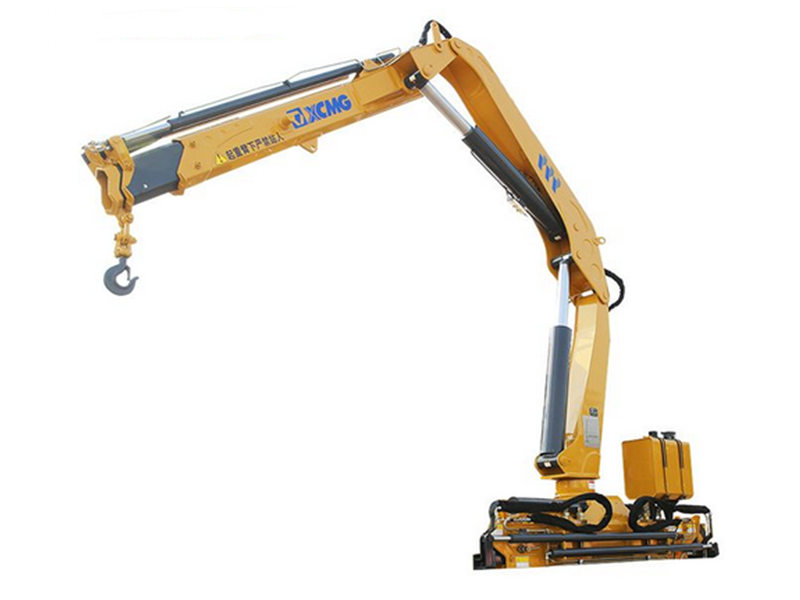

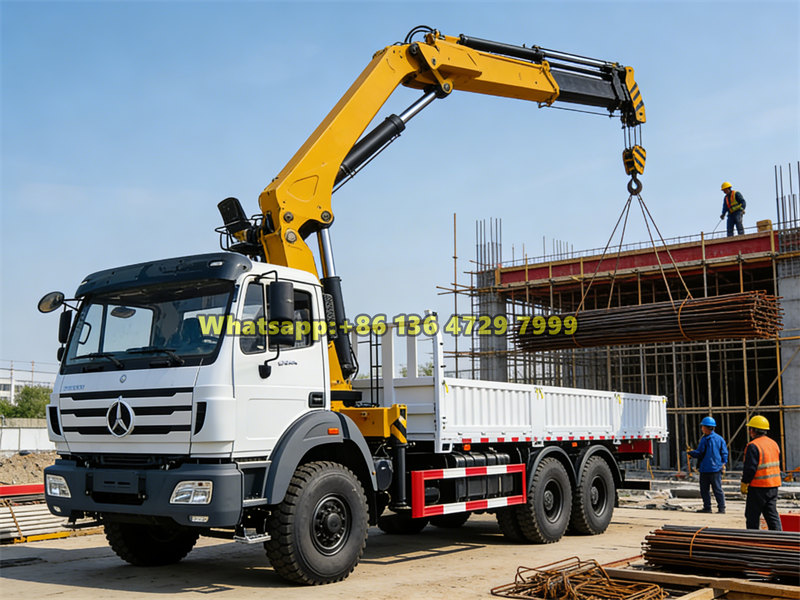

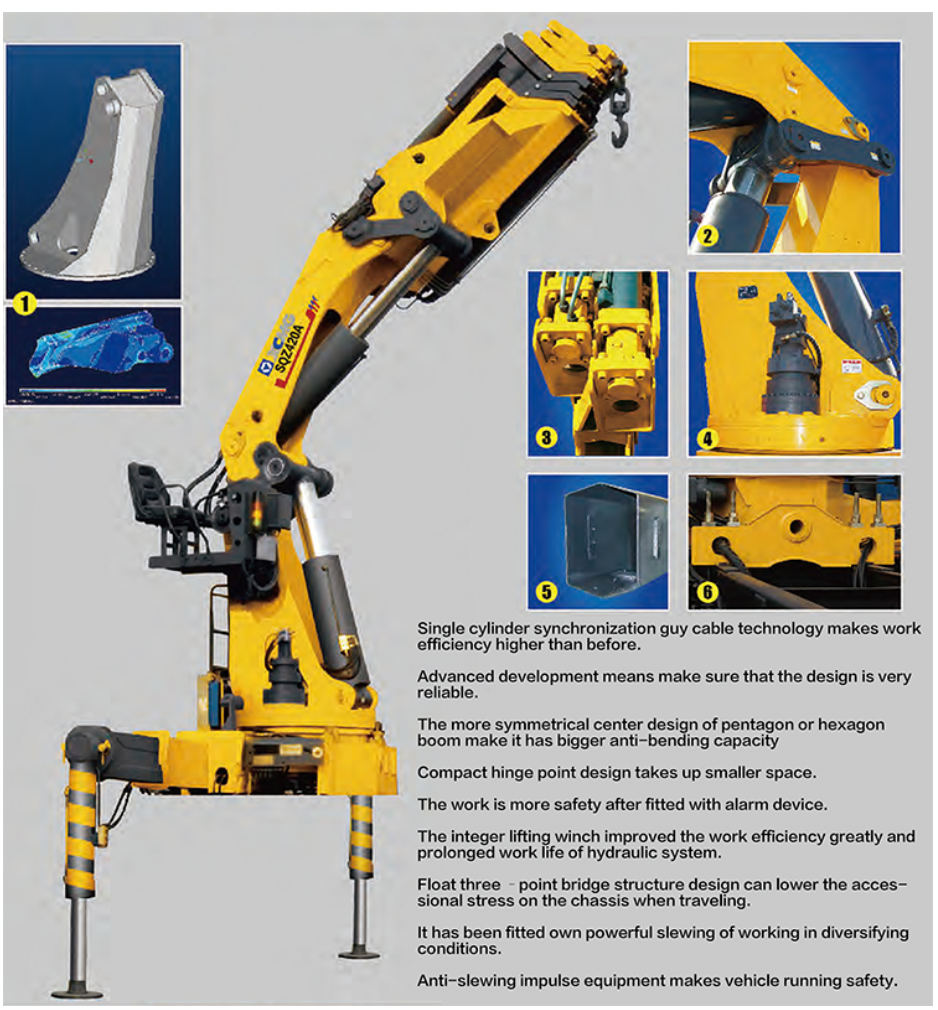

XCMG 10-ton knuckle boom crane specifications

Crane model

SQ10ZK3Q

Unit

Max lifting capacity

10000

kg

Max lifting moment

20

T.M

Recommend power

28

kw

Max Oil Flow of Hydraulic System

40

L/min

Max Pressure of Hydraulic system

30

Mpa

Oil Tank Capacity

160

L

Rotation Angle

360

°

Crane Weight

3477

kg

Installation Space

1150

mm

Max lifting height

12.5

m

Max. working radius

9.755

m

Outrigger span

5702

mm

Work radius(m)

2.00m           4.17m         5.99m         7.87m          9.75m

Lifting capacity(kg)

10000kg          4600kg        3050kg       2280kg       1700kg
