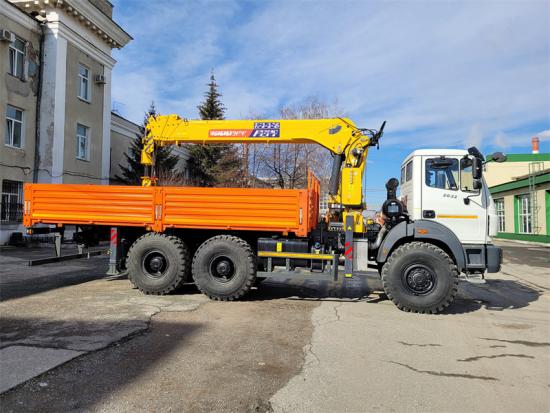

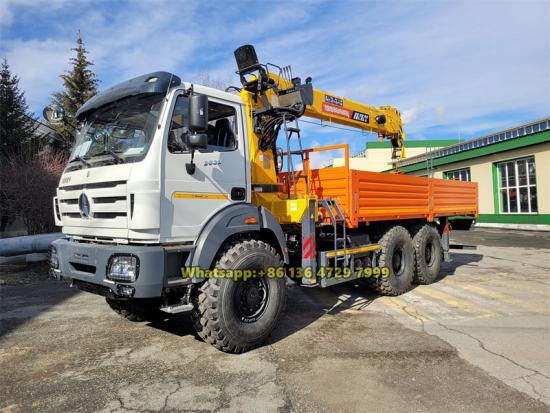

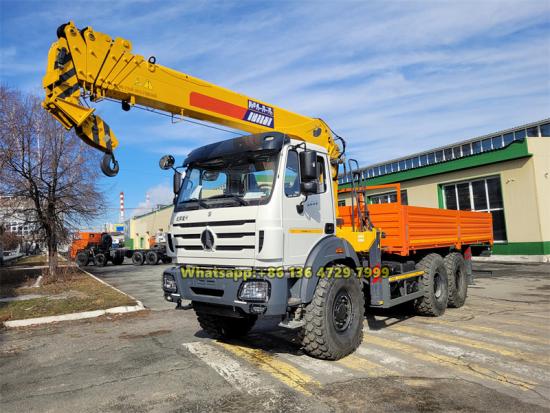

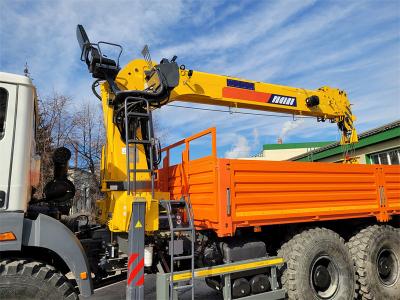

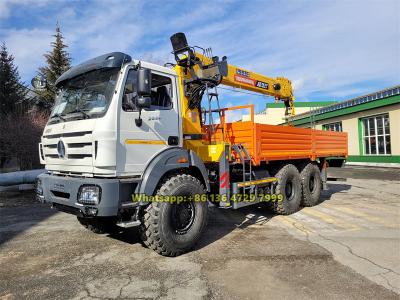

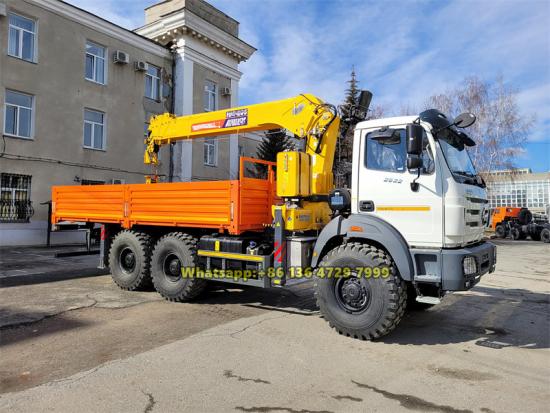

Гидравлический кран Beiben 6x6, устанавливаемый на транспортное средство.
Внедорожный автокран Beiben 6×6 — это крупная строительная машина, сочетающая в себе прочное внедорожное шасси и эффективные возможности подъема грузов. Благодаря мощному двигателю мощностью 340 лошадиных сил, системе полного привода и профессиональному внедорожному шасси, он обеспечивает превосходную мобильность на сложных участках местности. Оснащенный телескопическим краном SQS200, он обладает максимальной грузоподъемностью 8 тонн и рабочей высотой до 16,7 метров. В сочетании с двухнасосной комбинированной гидравлической системой он обеспечивает эффективные и гибкие подъемные операции, что делает его надежным решением для выполнения тяжелых задач в отдаленных районах и на строительных площадках.
Рыночная цена:
$35000Работоспособность:
8000 kgТип кабины:
NG80B short cabin, 2 seatsРазмеры (мм):
9800×2500×3980Система привода:
6×6Колесная база (мм):
4450+1450Мощность двигателя:
340HP/WP10.340E32Коробка передач:
12JS200TЗамечание:
14.00R20 tires, XCMG, palfinger/unic crane for optionПолноприводный автокран Beiben 6×6 — это крупногабаритная инженерная машина, сочетающая в себе возможности для тяжелых внедорожных перевозок и эффективную грузоподъемность. Он построен на шасси Beiben 2634 и оснащен мощным дизельным двигателем Weichai мощностью 340 л.с. Автомобиль отличается высокой грузоподъемностью, а благодаря системе полного привода, 12-ступенчатой трансмиссии FAST и прочной подвеске осей обеспечивает исключительную проходимость по бездорожью и стабильную работу с грузами в суровых условиях.
The XCMG SQS200 four-section telescopic crane offers a maximum lifting capacity of 8 tons and a lifting moment of 20 ton-meters, with an operating height of up to 16.7 meters. Its dual-pump combined hydraulic system enhances the efficiency and flexibility of combined operations.

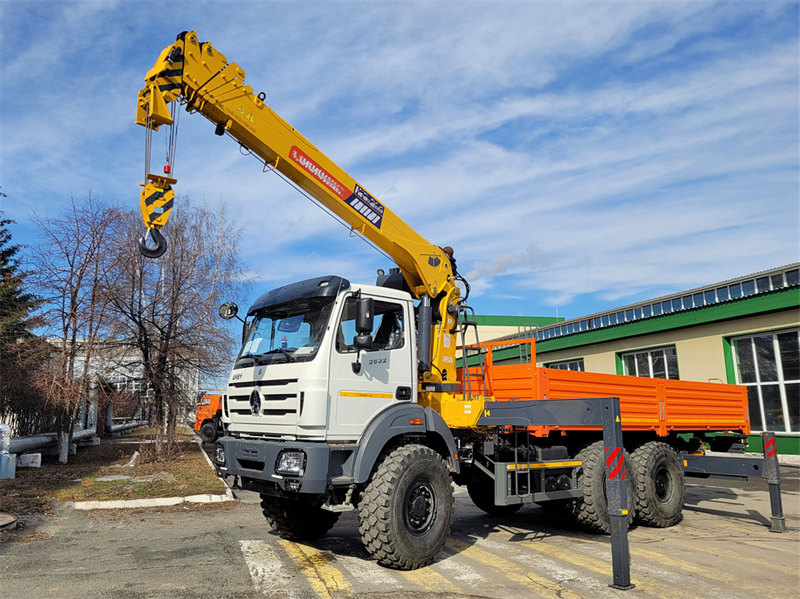

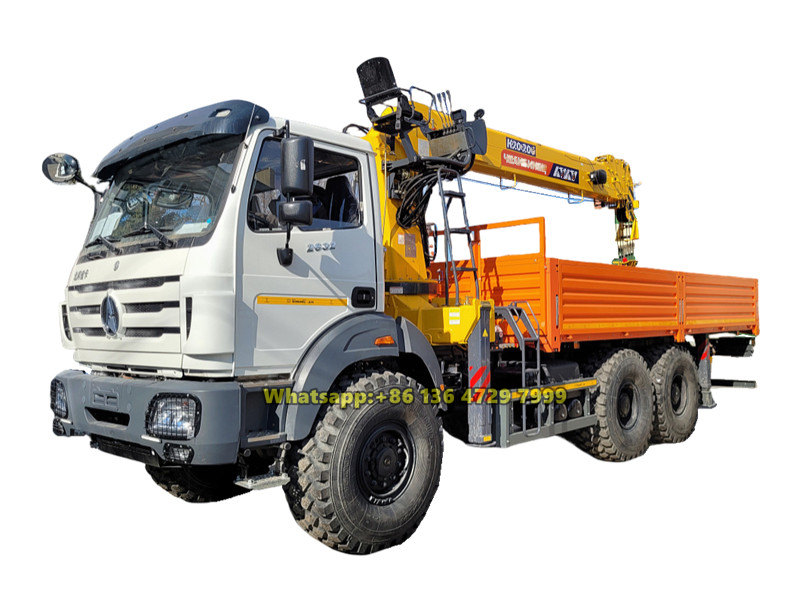

Beiben 6×6 vehicle mounted hydraulic crane

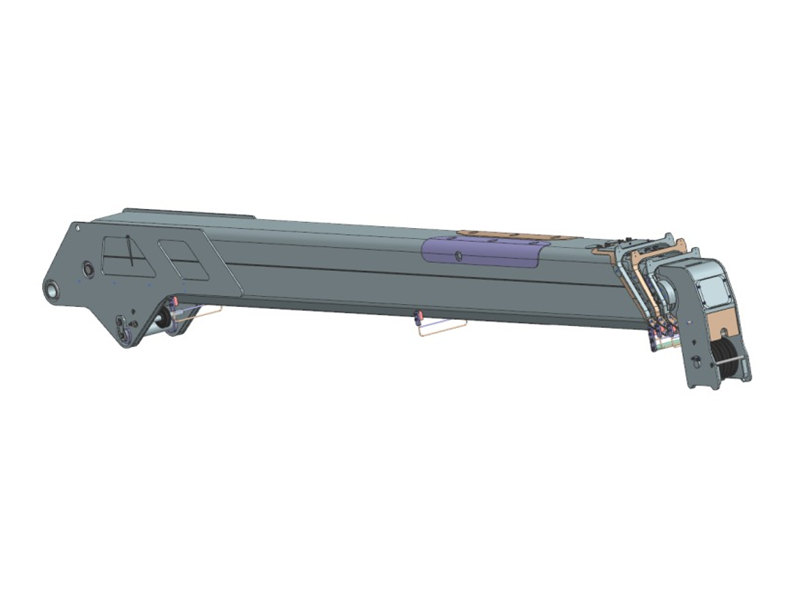

demonstrates a high degree of professionalism. The crane features a classic hexagonal boom structure and a single-cylinder wire rope synchronous telescoping mechanism, balancing structural strength with operational efficiency.
CEEC factory
is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B short cabin, Weichai 340HP diesel engine, Fast 12-speed gearbox
▶ Crane model: SQS200-4
▶ Crane lifting capacity: 8 tons

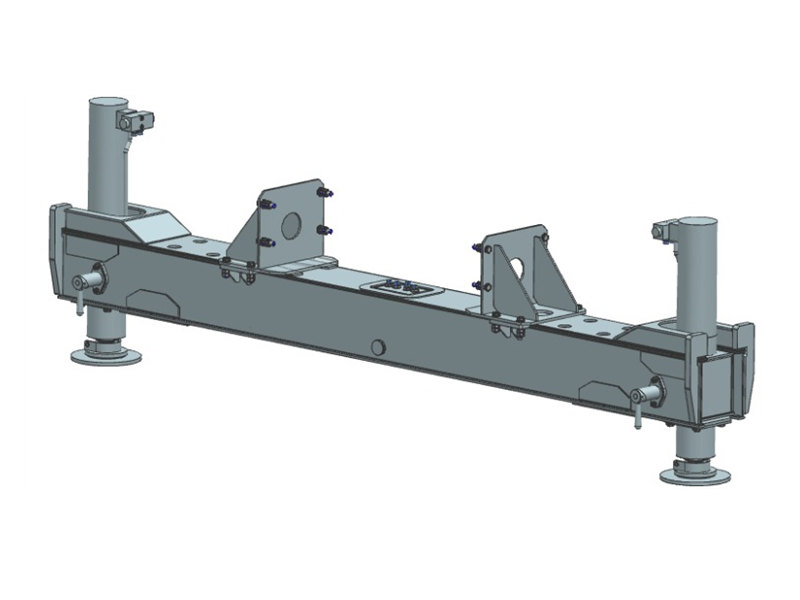

▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 7000×2500×600 mm
» Ⅱ. Product Specifications:
|
Product Technical Specifications |
||
|
Product Name |
Beiben 6 × 6 off road vehicle mounted hydraulic crane |
|
|
Chassis Model |
Beiben 2634 |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 3 |
|
|
Cabin |
Beiben NG80B |
|
|

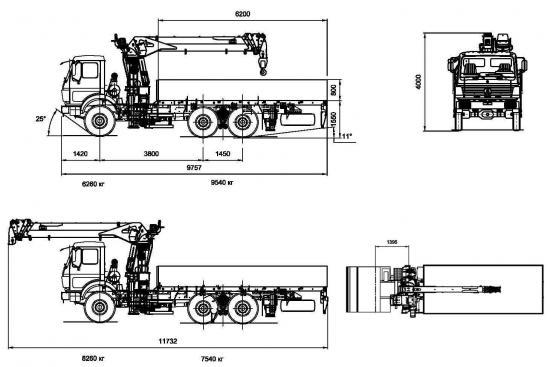

Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) |
9800*2500*3980 |
|
Cargo box dimensions |
7000*2500*600 |
|
|
Wheelbase |
4450+1450 |
|
|
Front overhang |
1420 |
|
|
Rear overhang |
2850 |
|
|
Weight data (kg) |
G.V.W |
26000 |
|
Curb weight (chassis) |
14800 |
|
|
Max payload |
20000-25000 |
|
|
Vehicle main performance |
Max. speed (km/h) |
80 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Model |
WP10.340E32 |
|
Maximum power |
250kw / 340hp |
|
|
Number of cylinders |
6 |
|
|
Displacement (L) |
9.726 |
|
|
Engine Manufacturer |
WEICHAI |
|
|
Gear box |
Brand |
FAST |
|
Type |
Manual, 12JS200T |
|
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Axle |
Front load capacity |
7000 kg |
|
Rear load capacity |
13000+13000 kg |
|
|
Suspension |
Front/rear leaf spring |
10/13 |
|
Steering Wheel |
left/right hand drive |
LHD |
|
Brake system |
Service brake |
Air brake |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
14.00R20, 6+1 pcs |
|
|
Crane Specifications |
||
|
Model |
SQS200 |
|
|
Type |
Telescopic boom crane, 4 sections |
|
|
Max Lifting Capacity (kg) |
8000 |
|
|
Maximum lift height (m) |
16.7 |
|
|
Working radius (m) |
15 |
|
|
Max Lifting Moment (t.m) |
20 |
|
|
Flow of Hydraulic System (L/min) |
55+55 |
|
|
Pressure of Hydraulic System (MPa) |
25 |
|
|
Hydraulic Oil Tank Capacity (L) |
200 |
|
|
Rotation Angle (°) |
360 ° all rotation |
|
|
Crane Weight (kg) |
3370 |
|
|
Installation Space (mm) |
1300 |
|
|
Outriggers |
2 front and 2 rear |
|
|
Outrigger span (mm) |
2318~5908 |
|

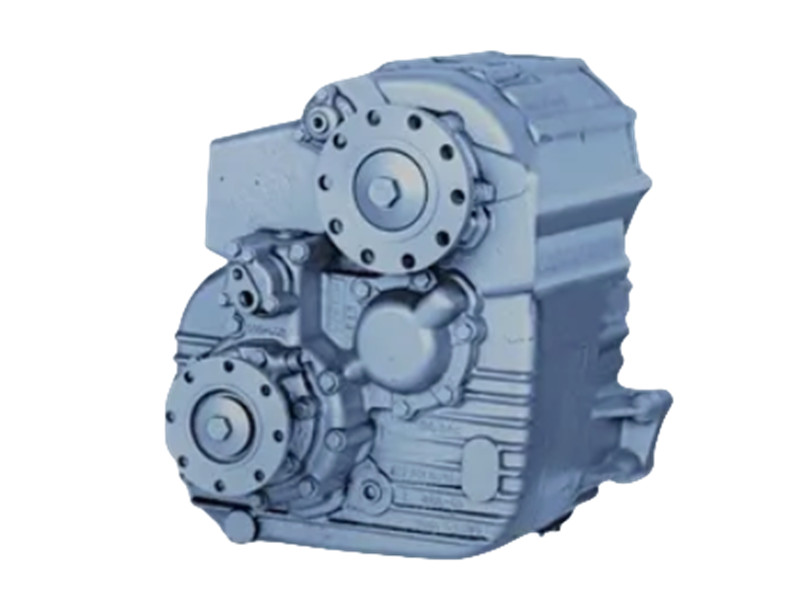

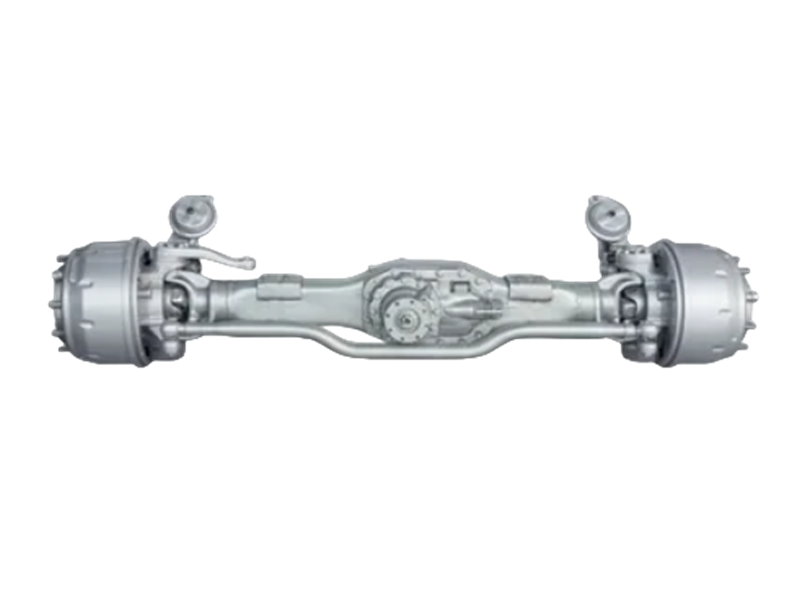

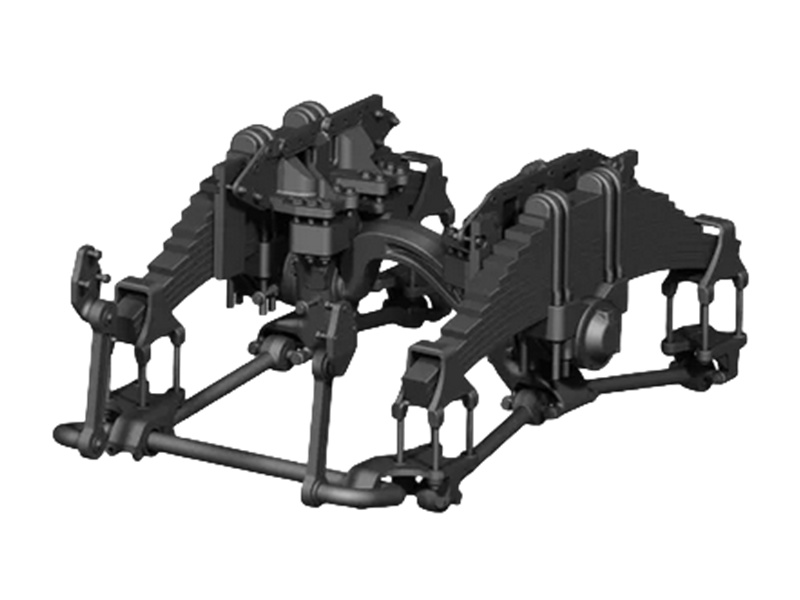

» Ⅲ. Chassis Advantages:

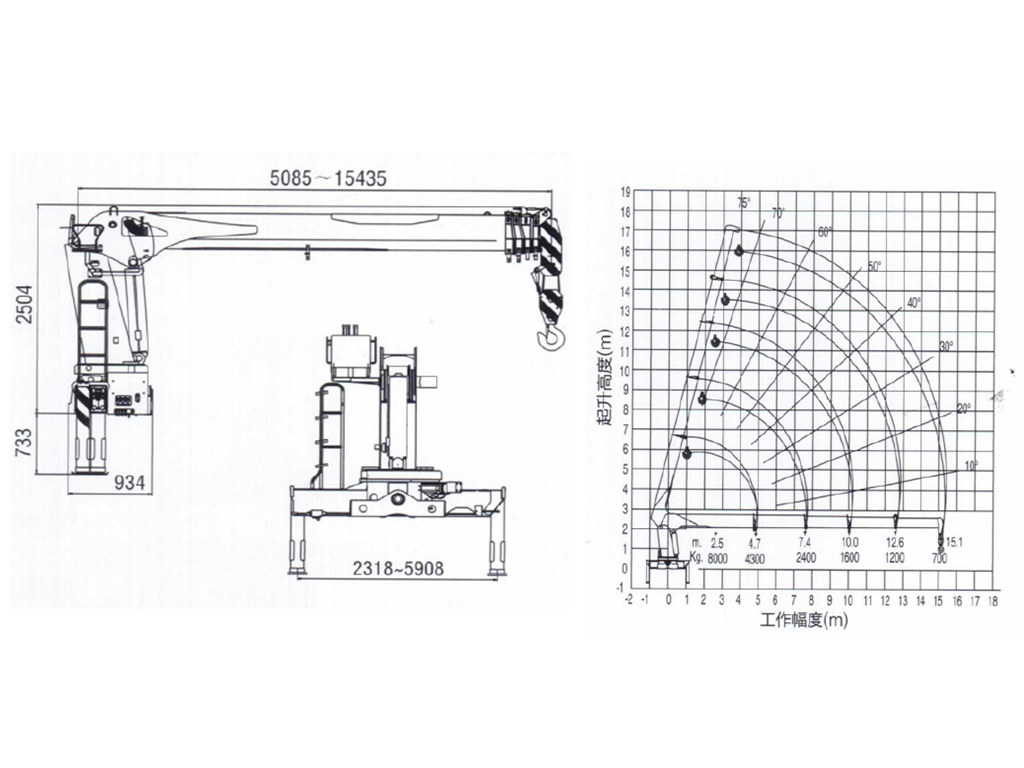

» Ⅳ. SQS200-4 Crane Specifications:
Crane parameters:
|
Item |
Unit |
SQS200-4 |
|
Max. lifting capacity |
kg |
8000 |
|
Max. lifting moment |
T.M |
20 |
|
Recommended power |
kw |
45 |
|
Max oil flow of hydraulic system |
L/MIN |
55+55 |
|
Max pressure of hydraulic system |
Mpa |
25 |
|
Oil tank capacity |
L |
200 |
|
Crane weight |
kg |
3370 |
|
Installation space |
mm |
1300 |
|
Rotation angle |
° |
All rotation |
Rated lifting load
|
SQS200-4 |
|||||
|
working radius(M) |
Max lifted load(kg) of different arm lengths |
||||
|
5.1m |
7.7m |
10.3m |
12.8m |
15.4m |
|
|
5.00 |
4300 |
3800 |
3400 |
3270 |
2700 |
|
7.50 |
|
2400 |
2350 |
2250 |
1990 |
|
10.00 |
|
|
1660 |
1580 |
1500 |
|
12.50 |
|
|
|
1200 |
1100 |
|
15.50 |
|
|
|
|
700 |

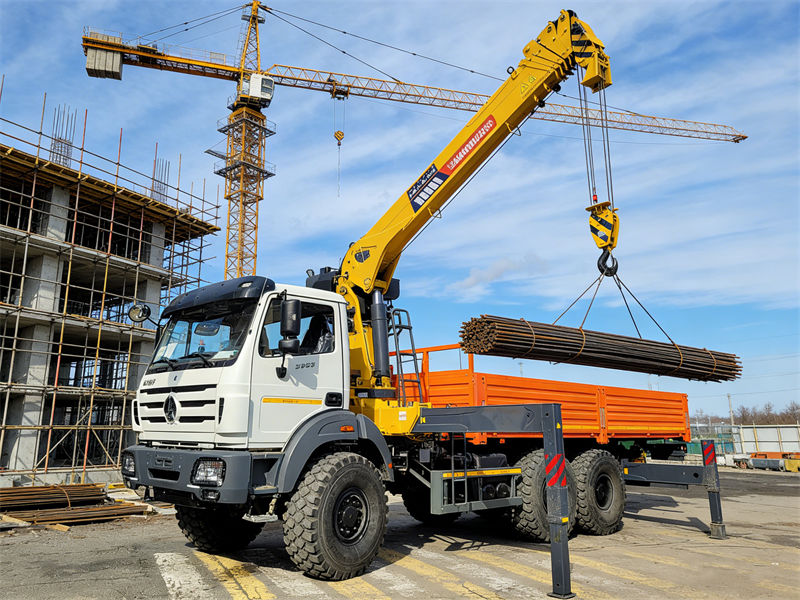

» Ⅴ. Crane features and options:

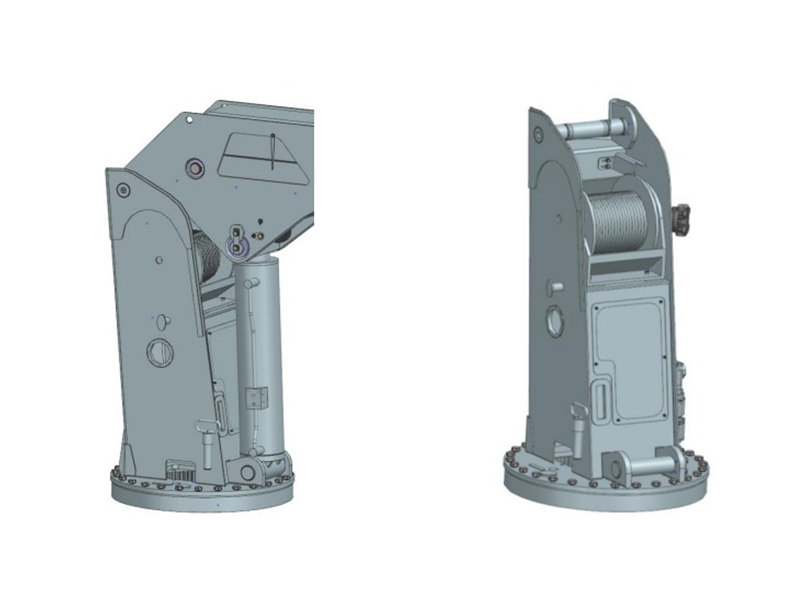

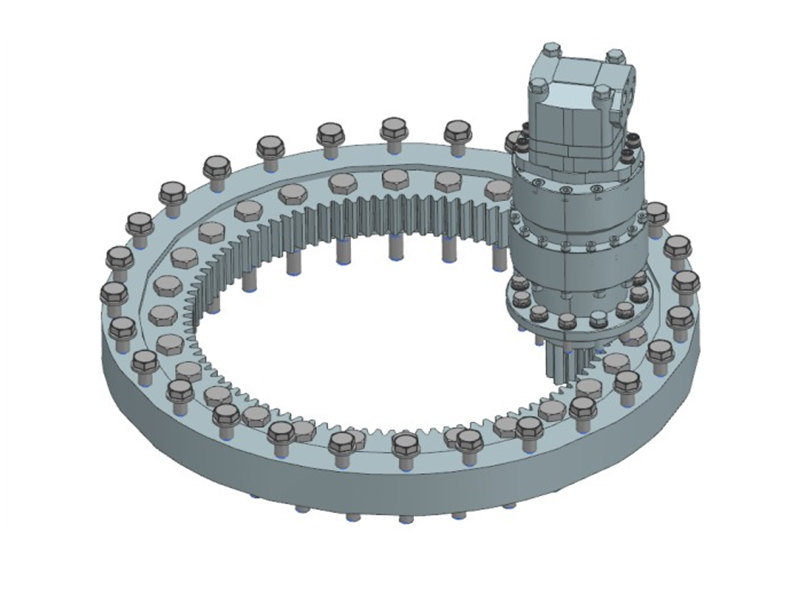

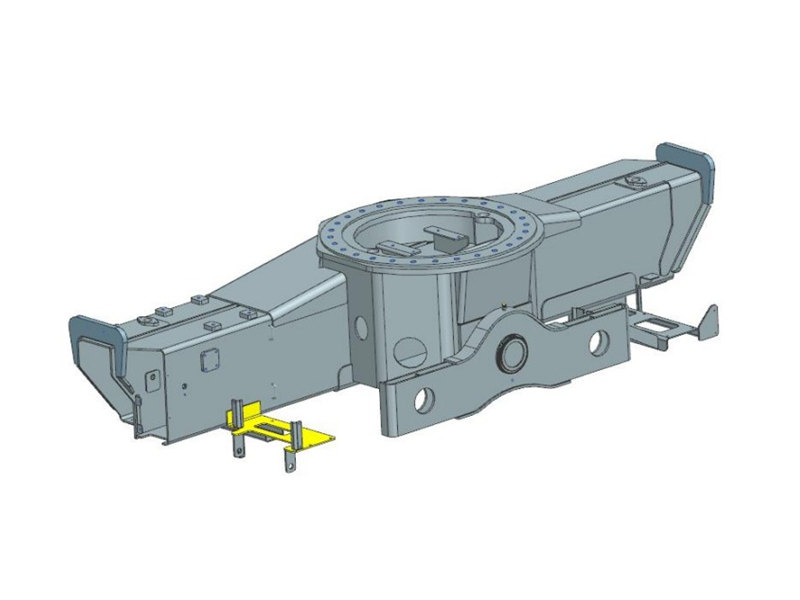

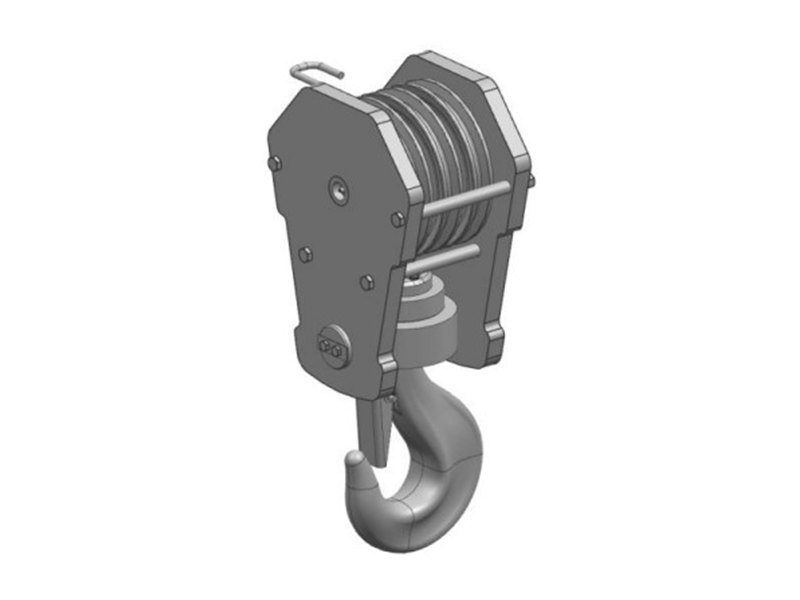

» Ⅵ. Crane Structure:

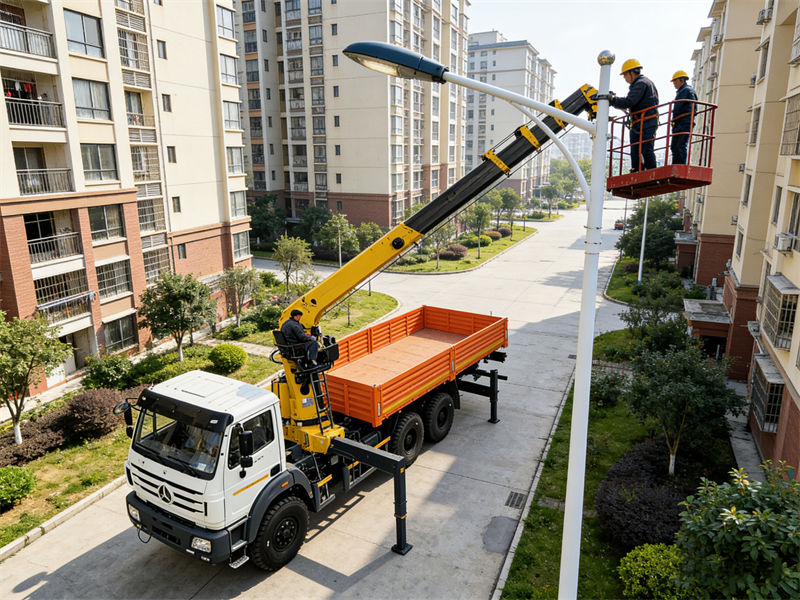

» Ⅶ . Product Applications:
