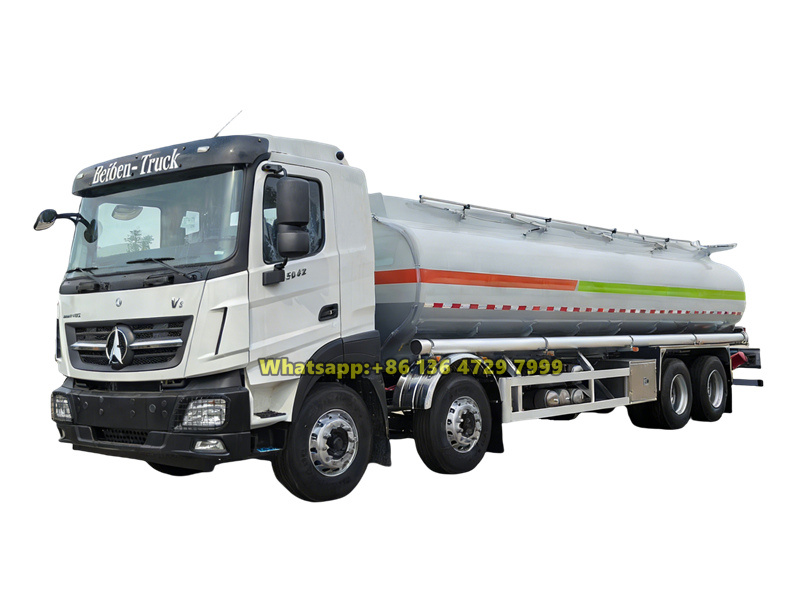

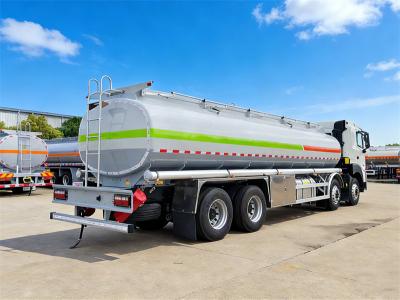

Топливозаправщик Beiben V3 8×4 — это специализированное и высокоэффективное решение для перевозки топлива большой грузоподъемности. Оснащенный двигателем Weichai мощностью 420 лошадиных сил в паре с 12-ступенчатой коробкой передач, он имеет прочные задние оси с двойным редуктором грузоподъемностью 13 тонн, обеспечивающие надежную несущую способность. Надстройка включает в себя независимый четырехсекционный резервуар из углеродистой стали объемом 30 000 литров, высокопроизводительные топливные насосы и полный комплект предохранительных клапанов европейского стандарта, что обеспечивает эффективную погрузку и разгрузку в полном соответствии с правилами безопасности при транспортировке опасных материалов.
Рыночная цена:
$59700Работоспособность:
30000 litersТип кабины:
Beiben V3 cabin, with sleeper bedРазмеры (мм):
11900×2500×3650Система привода:
8×4Колесная база (мм):
1500+4450+1450Мощность двигателя:
430HP/WP12.430E50Коробка передач:
12JS200TЗамечание:
4 compartments, stainless steel, aluminum alloy tanker is optional

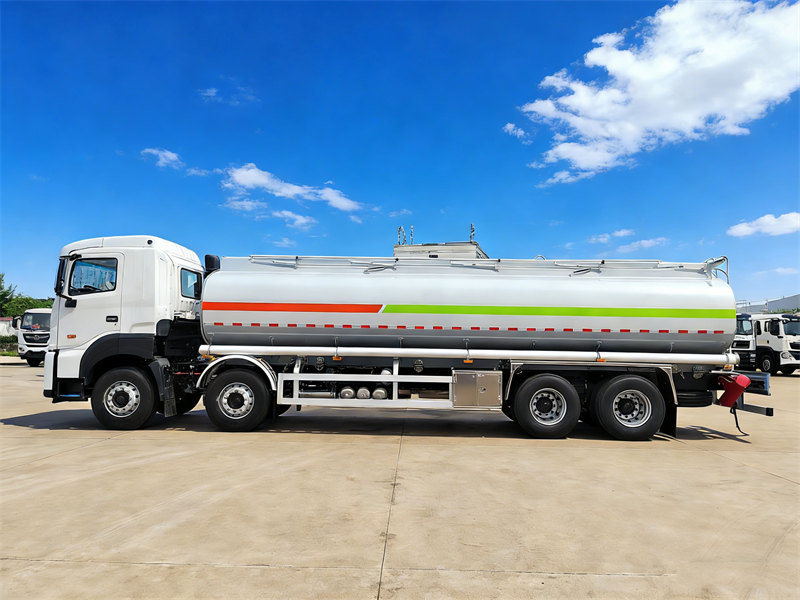

Топливозаправщик Beiben V3 — это специализированное транспортное средство для перевозки жидких грузов, построенное на устойчивом и надежном шасси Beiben 8×4 для тяжелых условий эксплуатации. Оснащенный мощным двигателем Weichai WP12.430E50 мощностью 430 лошадиных сил, 12-ступенчатой механической коробкой передач FAST и двухступенчатыми редукторами с блокировкой дифференциалов, он образует мощную и эффективную трансмиссию. Такая конфигурация обеспечивает выдающуюся грузоподъемность и проходимость даже в сложных условиях движения.
The superstructure of the
Beiben V3 fuel bowser
features a large 30,000-liter carbon steel fuel tank, constructed with 6mm thickened plates and intelligently divided into four independent compartments for the simultaneous and safe transport of multiple types of fuel. The operational system is comprehensive and efficient, including European-standard aluminum alloy manhole covers, aluminum alloy bottom valves, and a fuel pump with a flow rate of 60 m³/h. Coupled with two 4-inch diameter unloading rubber hoses, it significantly enhances the speed and convenience of fuel transfer operations. The tank top is equipped with an anti-slip walkway, reflecting a design that balances high operational efficiency with comprehensive safety compliance.
CEEC factory
is authorized supplier on beiben fuel tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 8×4 chassis, V3 cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Tank body: 30000 liters capacity, made of high quality cabon steel, 6mm thickness
▶ Compartment: 4 independent compartments, each compartment has one European standard manhole cover
▶ Fuel pump: China top brand fuel pump, with flow rate 60 m3/h
» Ⅱ. Product Specifications:
|
Beiben V3 8 × 4 fuel tanker truck specifications |
|||
|
Cabin |
Driving type |
8x4 left hand drive |
|
|
Cabin model |
Beiben V3 |
||
|
Number of seats |
2 seats, one sleeper bed |
||
|
Air-conditioning |
Equipped |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H): |
11990*2500*3650 mm |
|
|
Wheel base |
1500+4450+1450 mm |
||
|
Overhang (front/rear) |
1515/2825 mm |
||
|
Front wheel track |
2045/2045 mm |
||
|
Rear wheel track |
1872/1872 mm |
||
|
Weight |
Gross vehicle weight |
31000 kg |
|
|
Curb weight |
12800 kg |
||
|
Max. driving speed |
80 km/h |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP12.430E50 |
||
|
Number of cylinders |
6 |
||
|
Horse Power |
430 HP |
||
|
Max. output power |
316 KW |
||
|
Emission standard |
Euro 5 |
||
|
Displacement |
11596 ml |
||
|
Gearbox |
FAST 12JS200T, 12 forwards gear and 2 reverse gear |
||
|
Steering system |
8090 recirculating ball steering gear, hydraulic booster |
||
|
Front axle |
7500kg+7500kg, non-drive steering |
||
|
Rear axle |
13000kg+13000kg, double reduction driving axle, differential lock |
||
|
Tire |
12.00R20, 12 tires+1 spare tire |
||
|
Leaf spring |
Front 12pcs × 2 / Rear 13 pcs hard parabolic spring |
||
|
Exhaust pipe |
In the front |
||
|
Color and logo |
Depends on the customer's requirement |
||
|
Upper body parameters |
|||
|
Fuel tank |
Tank capacity |
30000 liters |
|
|
Tank material |
Carbon steel |
||
|
Thickness of the fuel tank |
6mm |
||
|
Compartment |
4 |
||
|

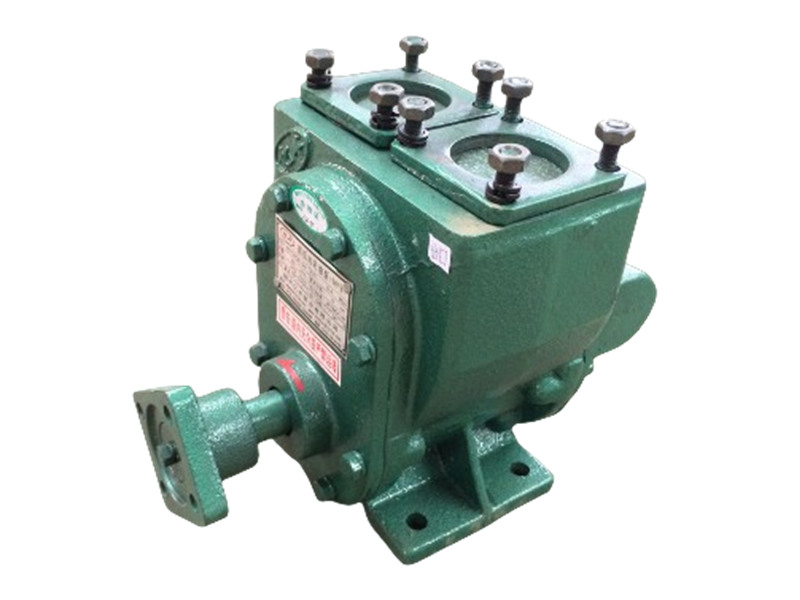

Fuel pump |
Model |
80YHCB60 |
|
|
Flow rate |
60 m 3 /h |
||
|
Working pressure |
0.6 Mpa |
||
|
Speed |
970 rpm |
||
|
Self-suction height |
6 m |
||
|
Manhole cover |

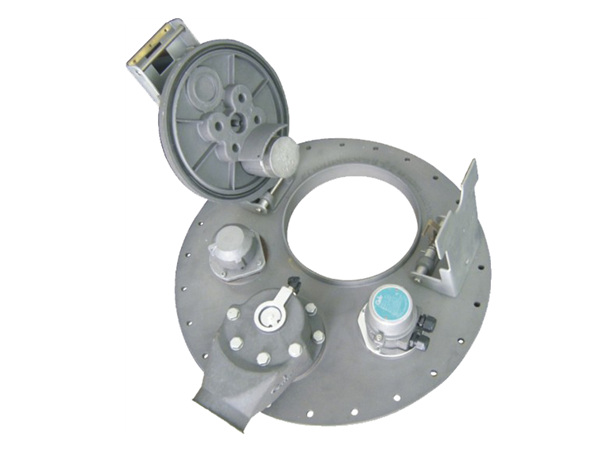

Aluminium alloy European standard with breath valve, oil-gas recycle valve, dip hatch, anti-overflow valve, 4 pcs |
||
|
Bottom valve |
Aluminium alloy material, 4 pieces |
||
|

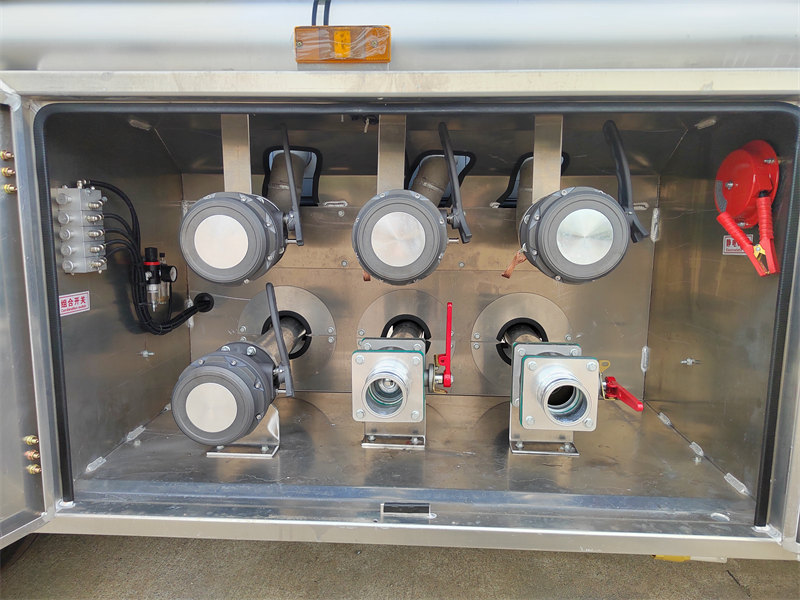

Discharge valve |
4 set (each compartment has one set discharge valve) |
||
|
Discharging Pipe |
4" rubber hose,2 pcs,6m/each |
||
|

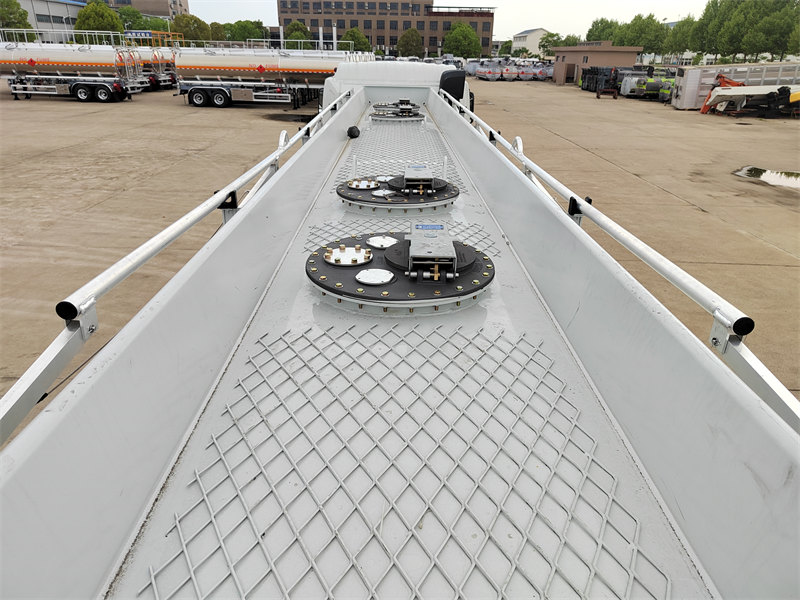

Walkway in the top |
Aluminium diamond plate walkway |
||
|
Loading system |
Up loading system |
||
» Ⅲ. Chassis Advantages:
Beiben Axles
Front axle: Beiben 7500kg+7500kg non-driving axle
Rear axle: Beiben 13000kg+13000kg dual reduction driving axle
Rear axle ratio: 5.263

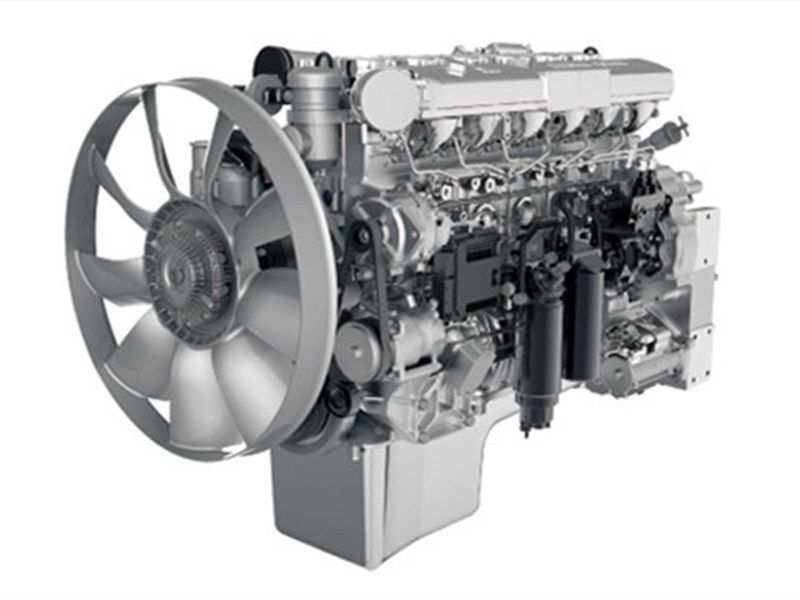

Weichai Engine
Model: WP12.430E50
Number of cylinders: 6
Power: 430HP/316KW
Displacement: 11596ml
Rated speed: 1900 rpm
Max. torque: 2060 N.m

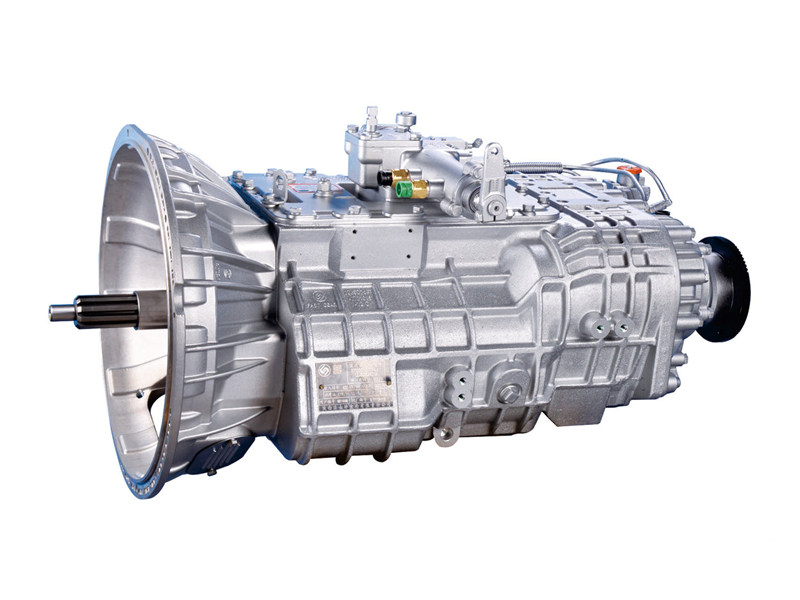

FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Rated input power: 355 kw
Rated input torque: 2000 N.m
Suspension system
Equipped with integrated balance suspension system developed based on Benz technology.
Front leaf spring: 12 pcs × 2
Rear leaft spring: 13 pcs
U-shape bolts: 4 pcs
» Ⅳ. Fuel Tanker Features:
|
|
|
Fuel tanker Capacity: 30000 liters |
Fuel pump Flow rate: 60 m³/h |
|
|
|
Manhole cover Material: aluminum alloy |

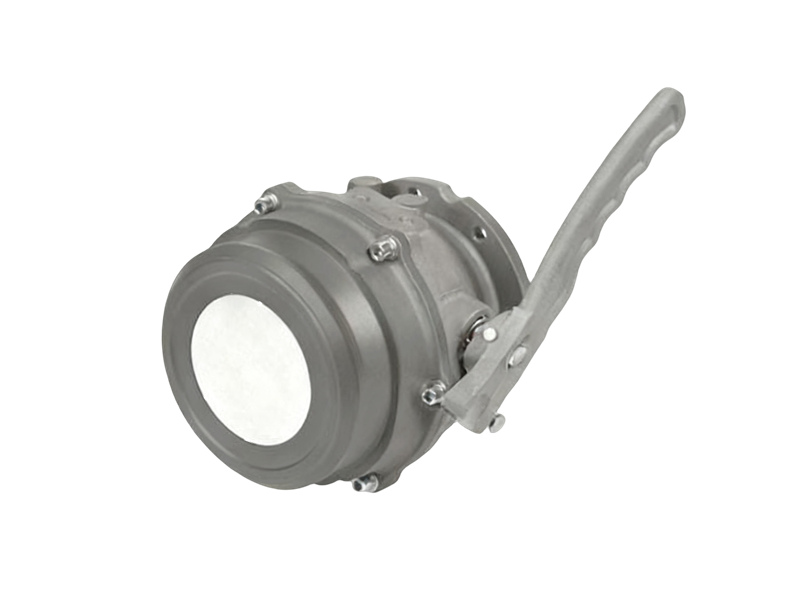

API adaptor valve Maximum Flow Rate: 2500 L/min |
|
|
|

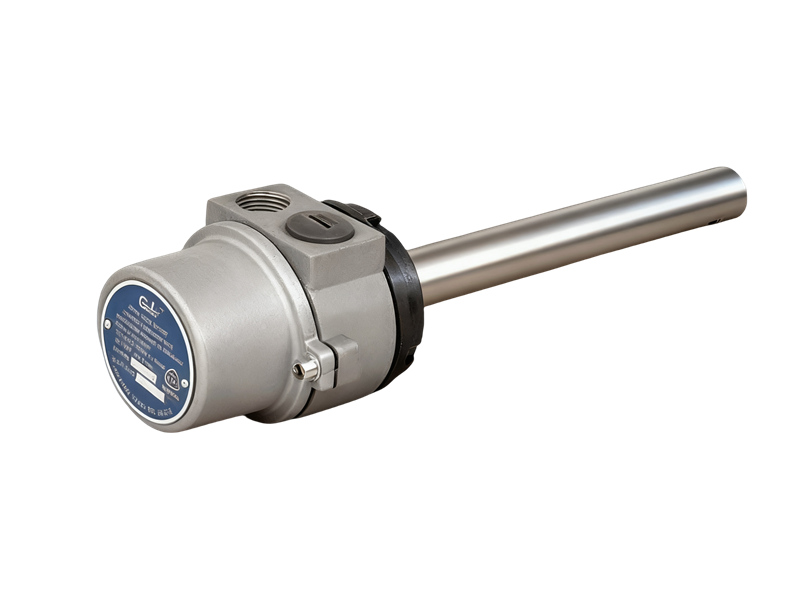

Overflow prevention probe Explosion-Proof Rating: Exia IIB T4 |
Emergency shutt-off valve Nominal Pressure: 0.6 MPa |
|
|
|

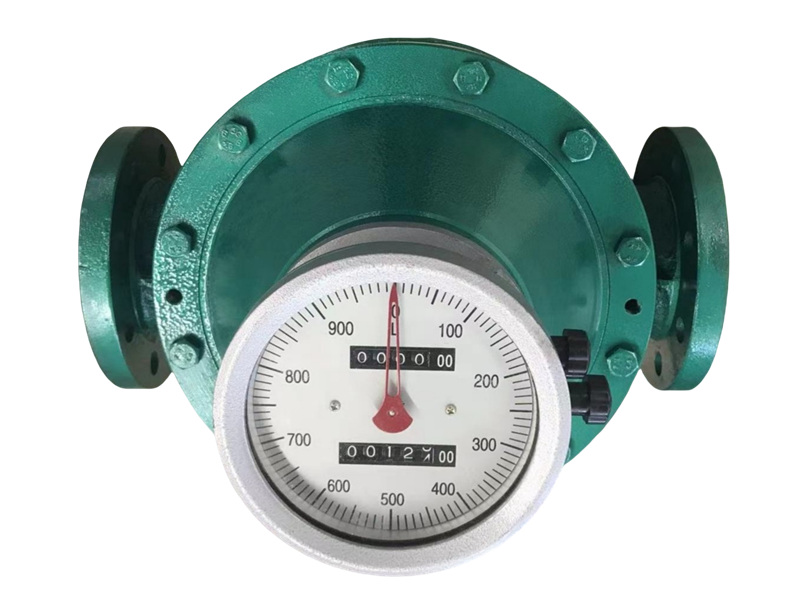

Flow meter Working pressure: 0-1.6MPa |

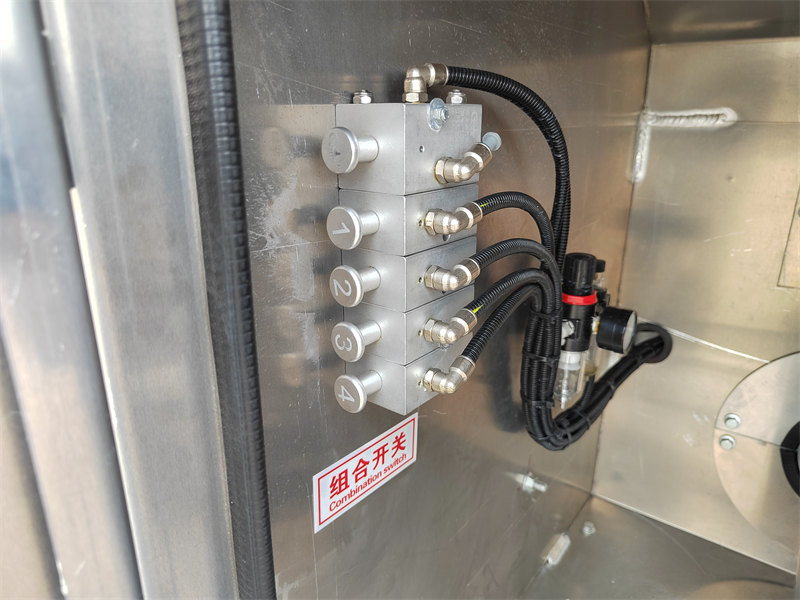

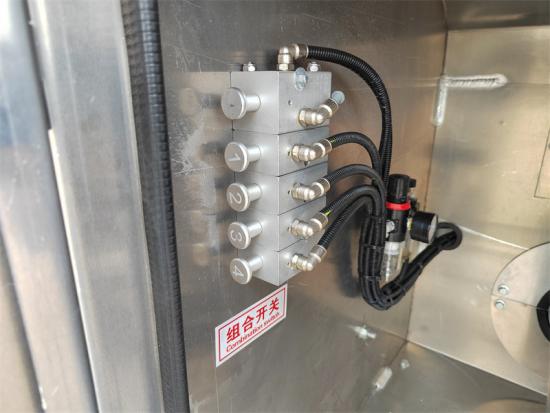

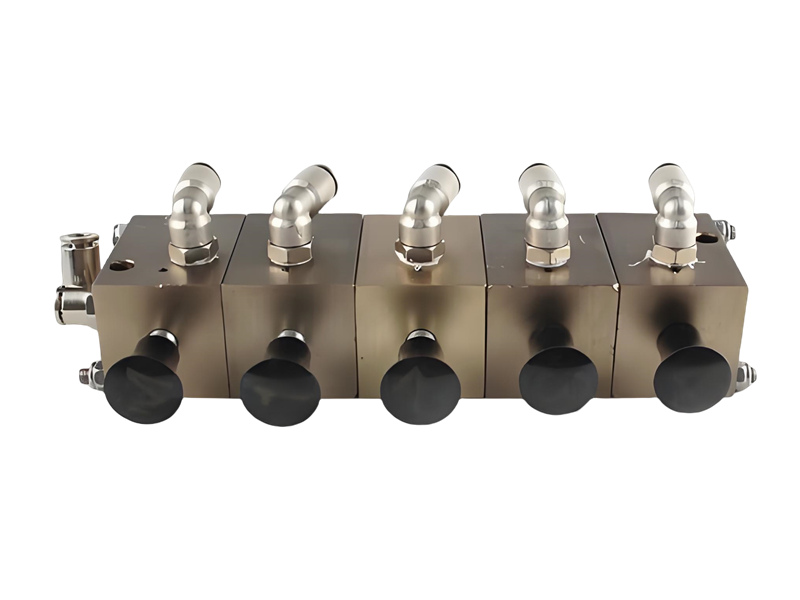

Aluminum alloy pneumatic switch Working Pressure: 0.5-0.8 MPa |
» Ⅴ. Product Details:

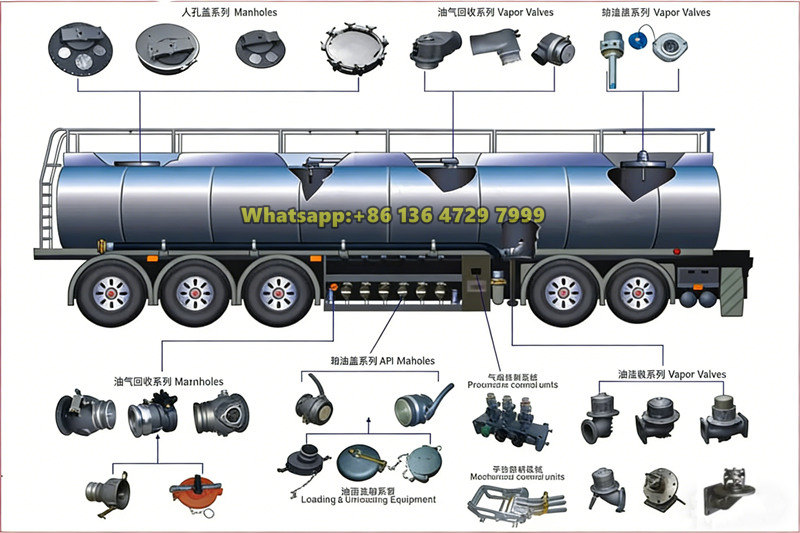

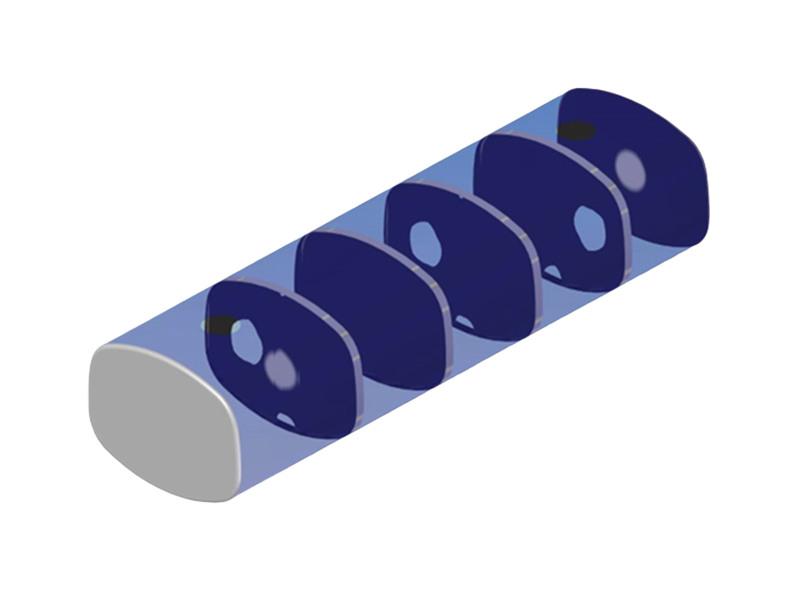

» Ⅵ. Product Structure:

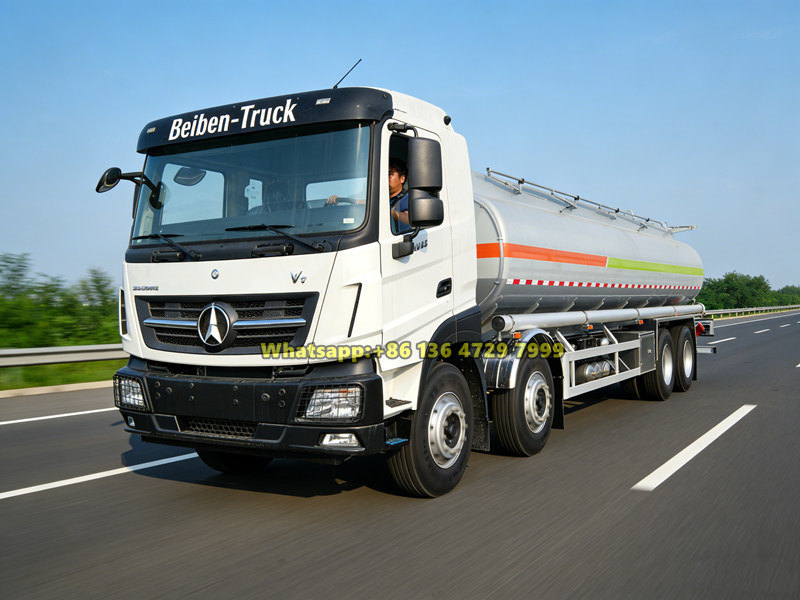

» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
