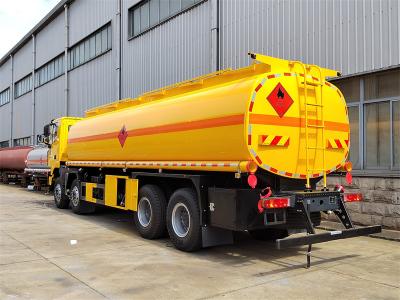

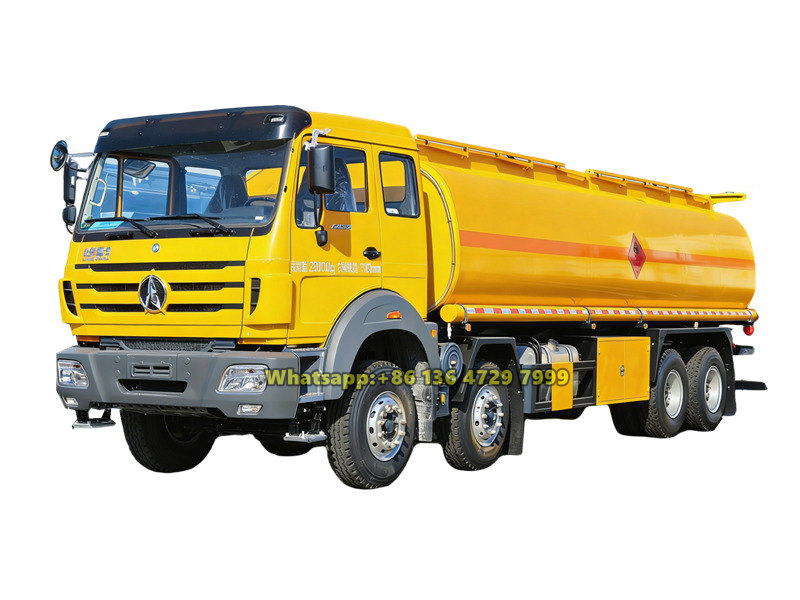

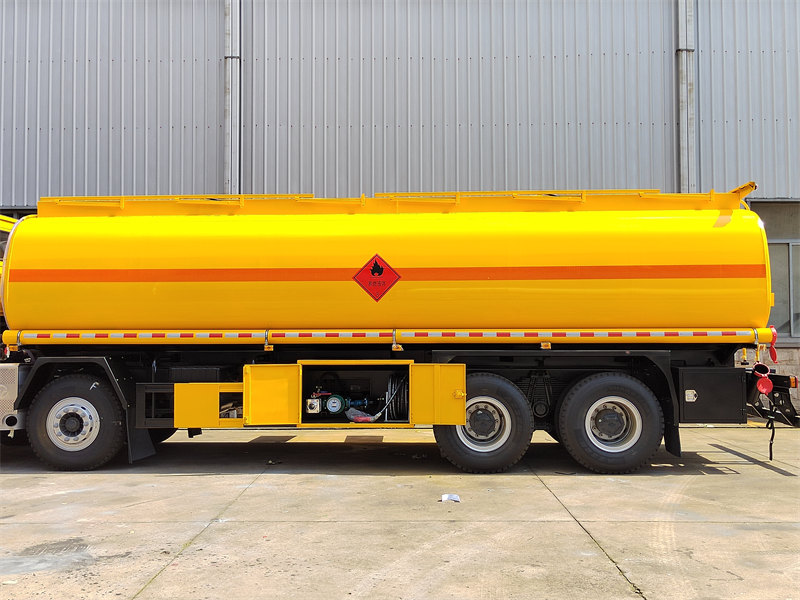

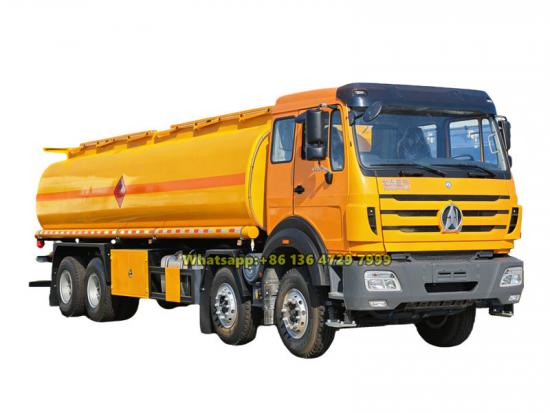

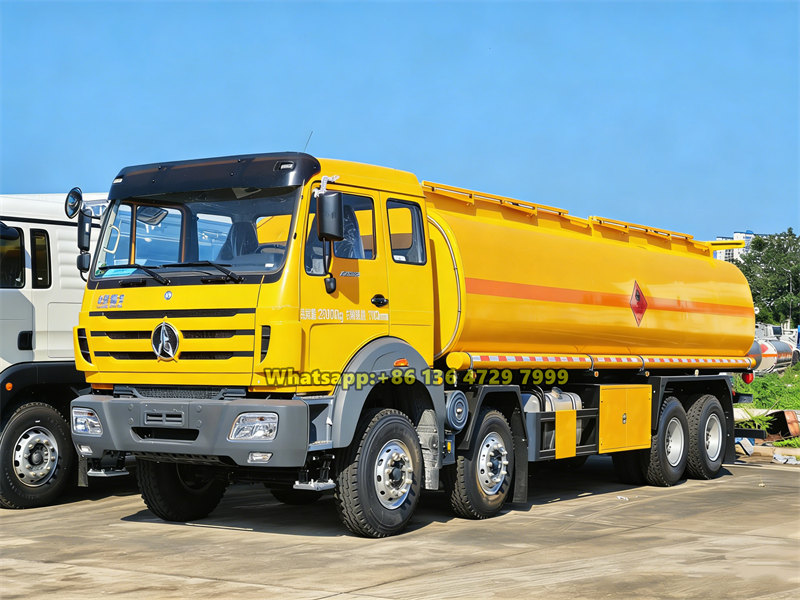

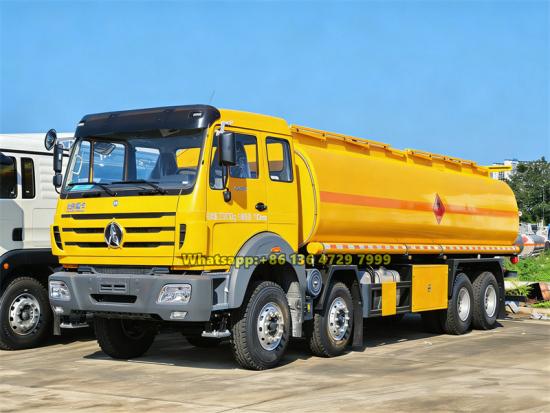

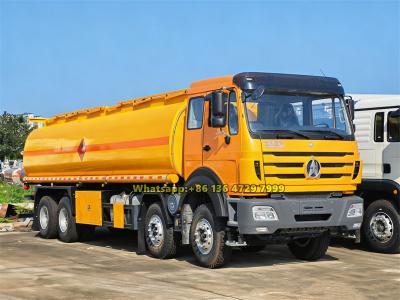

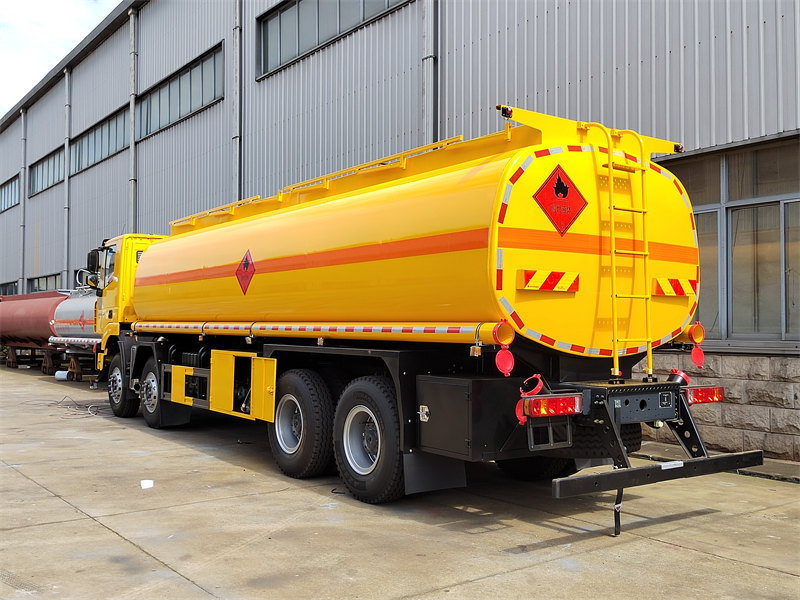

Заправочный автомобиль Beiben 8×4 — это крупное специализированное транспортное средство, объединяющее в себе функции транспортировки и заправки. Построенный на усиленном шасси Beiben 8×4, он оснащен двигателем мощностью 380 лошадиных сил и 30 000-литровым топливным баком из углеродистой стали, что позволяет безопасно перевозить дизельное топливо. Автомобиль имеет две топливные заправочные колонки и систему заправки барабанного типа, что обеспечивает эффективную и высокопроизводительную мобильную заправку на месте.
Рыночная цена:
$53500Работоспособность:
30000 litersТип кабины:
NG80B long cabin, with sleeperРазмеры (мм):
11700×2550×3520Система привода:
8×4Колесная база (мм):
1500+4450+1450Мощность двигателя:
380HP/WP10.380E32Коробка передач:
12JS200TЗамечание:
2 compartments, 2 hose reels, stainless steel, aluminum alloy tanker is optional
Заправочный автомобиль Beiben 8×4 — это мощный нефтетранспортер и мобильная заправочная установка, модифицированная на шасси Beiben 3138, с приводом 8×4. Его основная силовая установка состоит из двигателя Weichai мощностью 380 лошадиных сил в паре с 12-ступенчатой механической коробкой передач. Этот автомобиль сочетает в себе возможности транспортировки и заправки благодаря своему 30-тысячетонному топливному баку из углеродистой стали, предназначенному для безопасной транспортировки таких видов топлива, как бензин и дизельное топливо. Одновременно, благодаря встроенному масляному насосу и системе с двумя катушками, он может эффективно выполнять задачи мобильной заправки на месте.

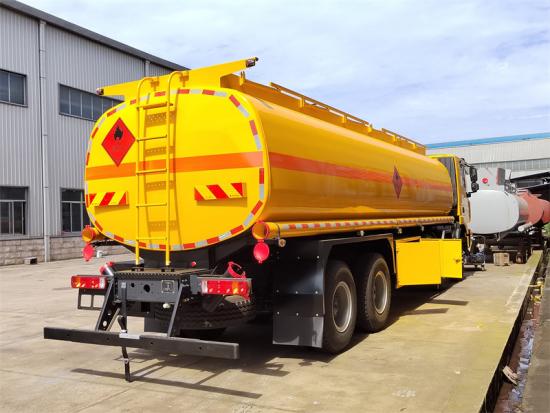

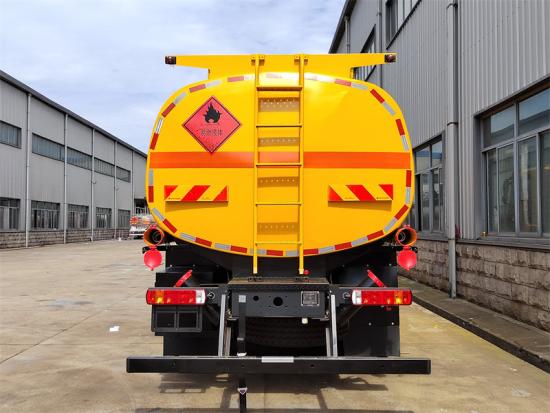

The tank of this
Beiben mobile fuel disnpenser truck
adopts a dual-compartment design and is equipped with vapor recovery systems, anti-overflow probes, and static grounding devices to ensure stable and reliable transportation. During operations, the vehicle utilizes a fuel pump with a flow rate of 60 m³/h and 20-meter-long refueling reels, enabling rapid refueling for multiple pieces of equipment simultaneously. It is an ideal fuel supply solution for large-scale work sites such as mining areas and construction sites.
CEEC factory
is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 8×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Tanker body: Carbon steel, 300000 liters capacity, 2 compartments
▶ Manhole cover: European standard, with breather valve
▶ Fuel pump: China top brand, 60m3/h flow rate, 970 rpm speed
▶ Hose reel: 20 meters hose, diameter DN25mm
» Ⅱ. Product Specifications:
|
Vehicle Basic Parameters |
|
|
Product Name |
Beiben 8 × 4 Refueling Truck |
|
Overall Dimension (LxWxH) |
11700×2550×3520 mm |
|
Total Mass |
31000kg |
|
Rated Payload |
18400kg |
|
Curb Weight |
12600 kg |
|
Passenger |
2 |
|
Approach/Departure Angle |
14/9 ° |
|
The Parameters of Chassis |
|
|
Model |
Beiben 3138 |
|
Driving Type |
8 × 4 left hand drive |
|
Wheelbase |
1500+4450+1450mm |
|
Gearbox |
FAST 12JS200T, 12-speed forward and 2 reverse, manual |
|
Tire |
12.0R20 |
|
The Number of Tires |
12+1 |
|
Front/Rear Overhang |
1435/2350 |
|
Brake system |
Service brake:dual-circuit pneumatic brake
|
|
The Parameters of Engine |
|
|
Manufacturer |
WEICHAI |
|
Model |
WP10.380E32 |
|
Number of cylinders |
6 |
|
Rated Power |
380HP/280KW |
|
Fuel Type |
Diesel |
|
Displacement |
9.726L |
|
Emission Standard |
Euro 3 |
|
Rated speed |
2200 rpm |
|
Max. torque |
1600N.m |
|
The Parameters of Superstructure |
|
|
Tank Capacity |
30000 liters |
|
Tanker Material |
Carbon steel |
|
Material Thickness |
6mm |
|
Compartment |
2 |
|
Transport medium |
Diesel oil, gasoil or others |
|
Fuel pump |
Model: 80YHCB60 Flow rate: 60 m3/h Working pressure: 0.6 Mpa Rated speed: 970 rpm |
|
Refueling hose reel |
Number of hose reel: 2 units Model: TLJP25-20 Hose diameter: 25mm Length: 20m Rated pressure: 0.6Mpa |
|
Safety fittings |
Oil Vapor Recovery System Anti-overflow probe Electrostatic wire reel Emergency cut-off valve API discharging valve |
» Ⅲ. Product Features:

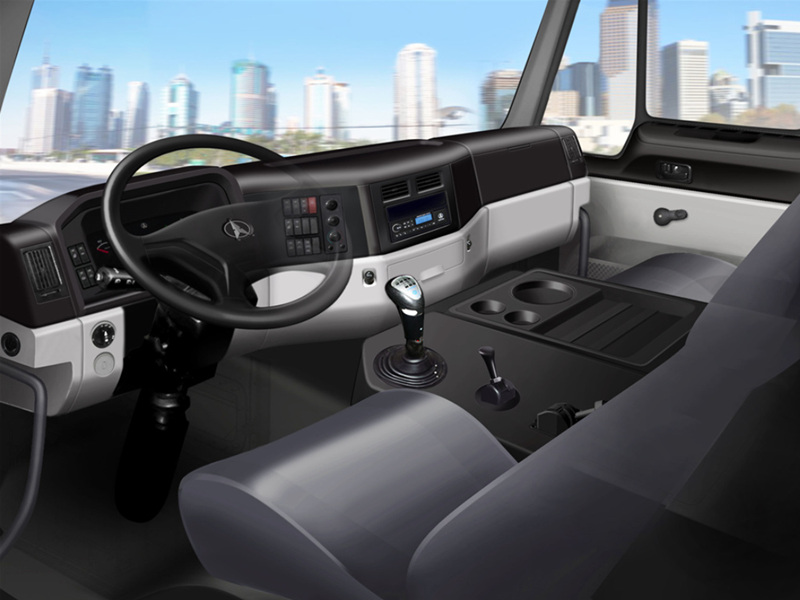

Beiben NG80B Cabin
Integral interior trimming,
Feul Pump
Model: 80YHCB60
Tank body
Capacity: 30000 liters
Material: Carbon steel
Thickness: 6mm
Compartment : 2

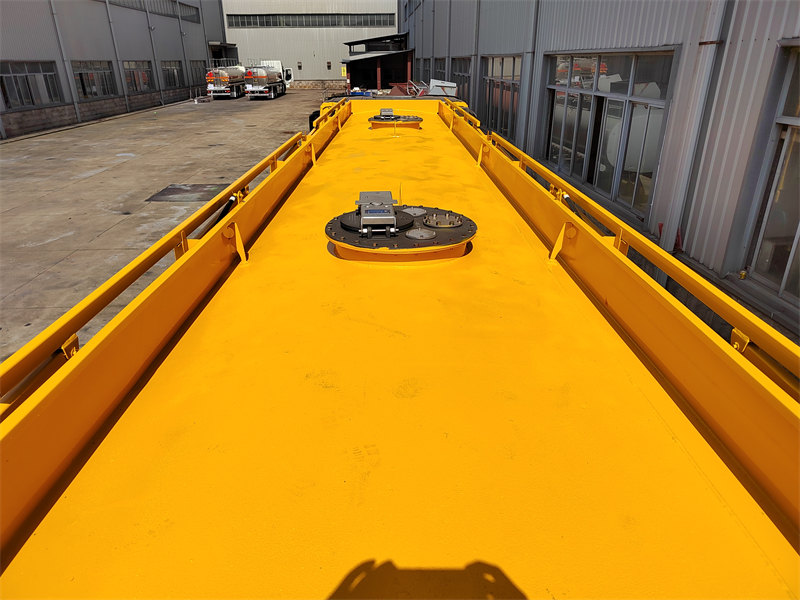

Manhole cover
Emergency Opening Pressure:
21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate:
7000 m³/h (at 34 kPa)
Material:
Aluminum Alloy
Installation Method:
Clamp-type
Temperature Range:
-20℃ ~ +70℃
API adaptor valve
Nominal Pressure:
0.6 MPa
Maximum Flow Rate:
2500 L/min
Main Body Material:
Aluminum Alloy
Operation Mode:
Manual
Design Temperature:
-20℃ ~ +70℃

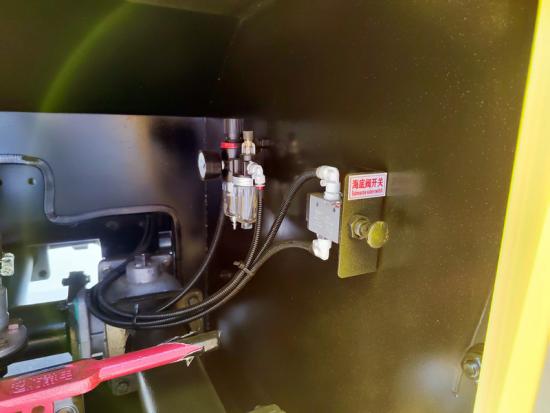

Emergency shutt-off valve
Nominal Pressure:
0.6 MPa
Material:
Aluminum Alloy
Operation Mode:
Pneumatic
Temperature Range:
-20℃ ~ +70℃
Overflow prevention probe
Operating Voltage:
12 VDC
Explosion-Proof Rating:
Exia IIB T4
Response Time:
< 1 s
Design Temperature:
-40 ℃ ~ +60 ℃
Operating Current:
< 5 mA
Operating Medium:
Light fuel oil

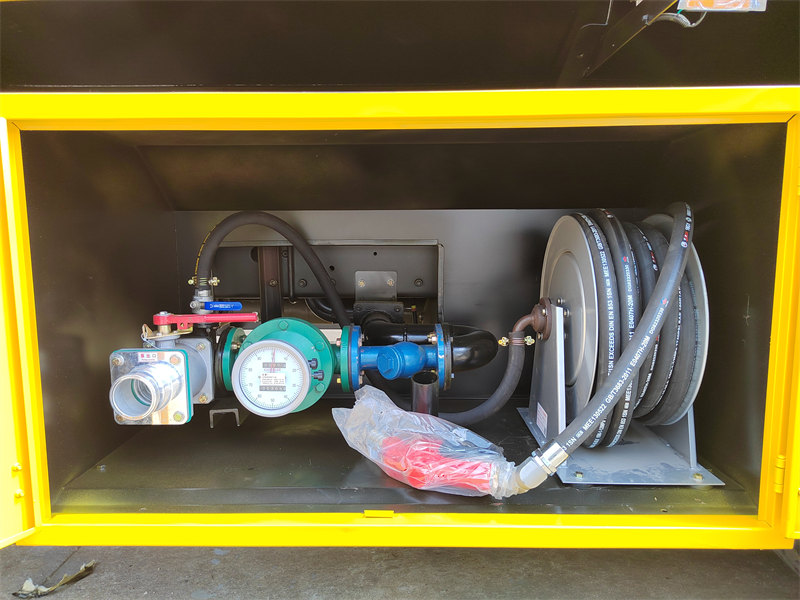

Hose reel
Model:
TLJP25-20
Hose diameter:
25mm
Length:
20m
Rated pressure:
0.6Mpa

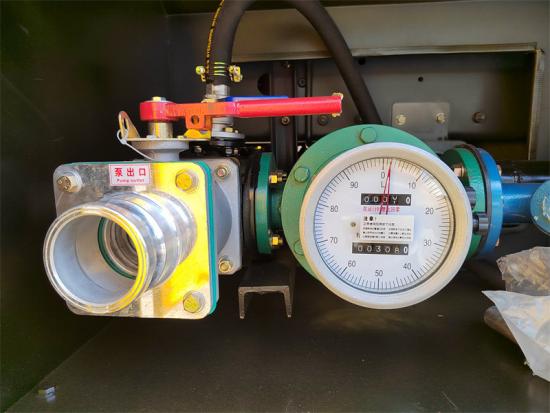

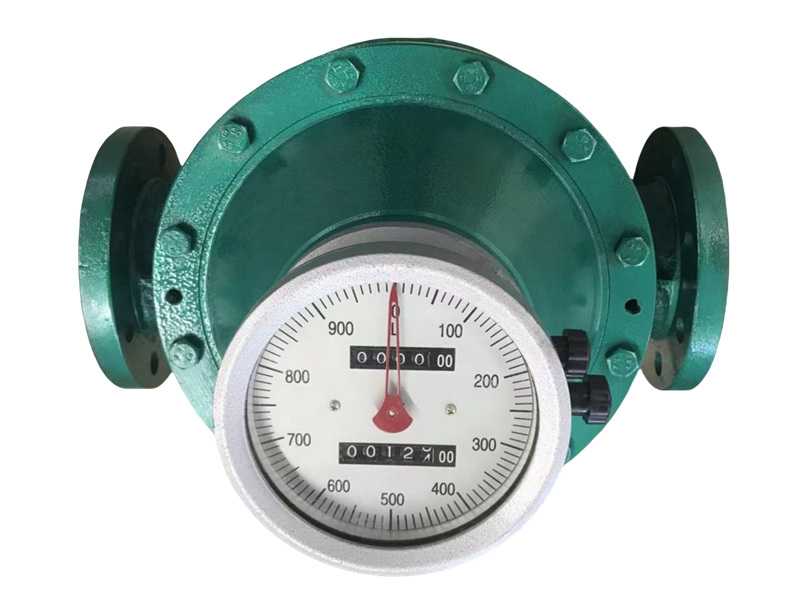

Flow meter
Measuring medium:
Gasoline, diesel, etc.
Nominal diameter:
DN10-200
Working pressure:
0-1.6MPa
Medium viscosity:
2-200Mpa.s
Medium temperature:
-20°C~+80°C
Measuring accuracy:
±0.2
Protection class:
IP65
» Ⅳ. Product Details:

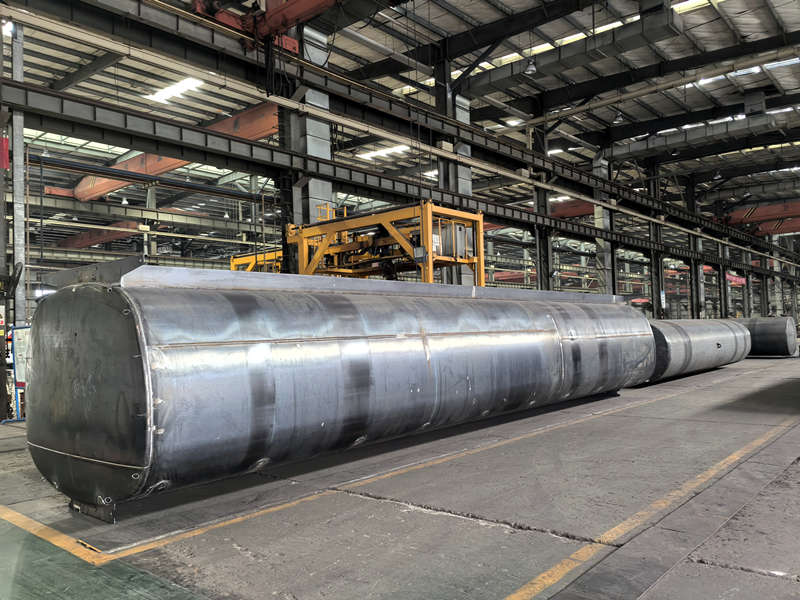

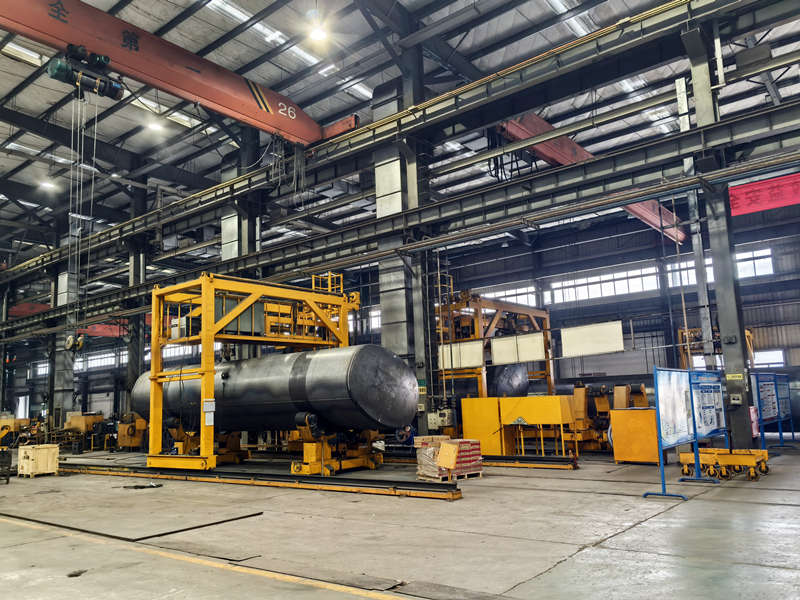

» Ⅴ. Tanker Production Line:
» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
