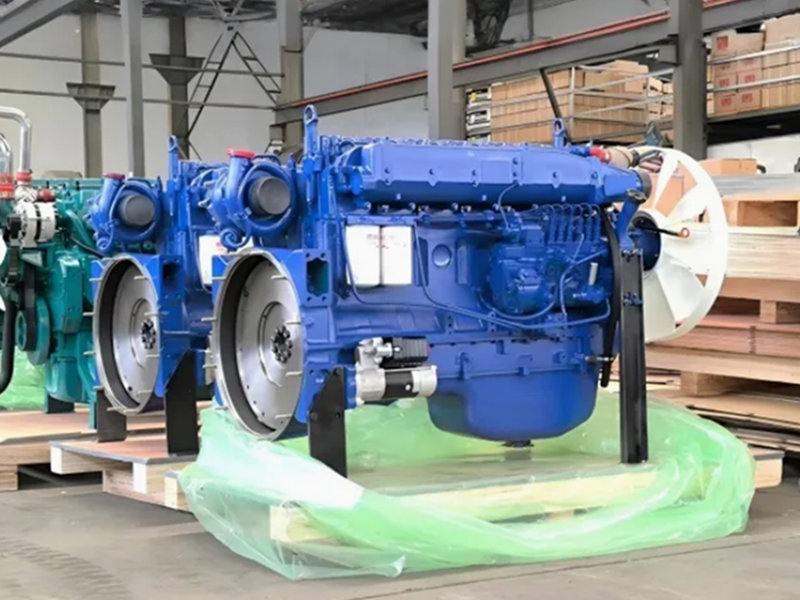

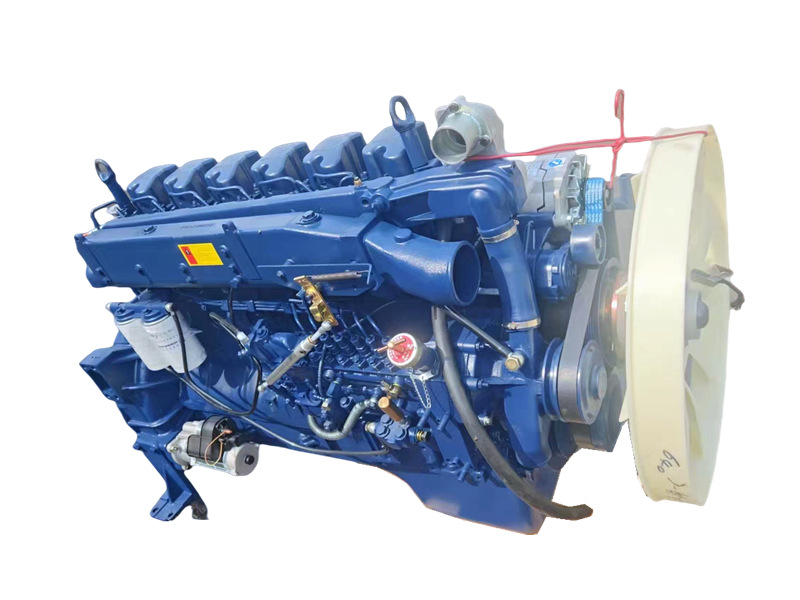

Двигатель Weichai WP10.380E32 в сборе
Двигатель Weichai WP10.380E32 — это рядный шестицилиндровый дизельный двигатель с рабочим объемом 9,726 литра, максимальной мощностью 380 лошадиных сил и крутящим моментом 1600 Н·м. Он использует технологию турбонаддува с промежуточным охлаждением и систему впрыска топлива Common Rail высокого давления, отличается компактной конструкцией и высокой надежностью. Он обеспечивает превосходный баланс между высокой эффективностью и экономичным расходом топлива, что делает его одним из наиболее часто используемых двигателей в грузовиках Beiben.
Размеры (мм):
1525×730×1063mmМощность двигателя:
380HPЗамечание:

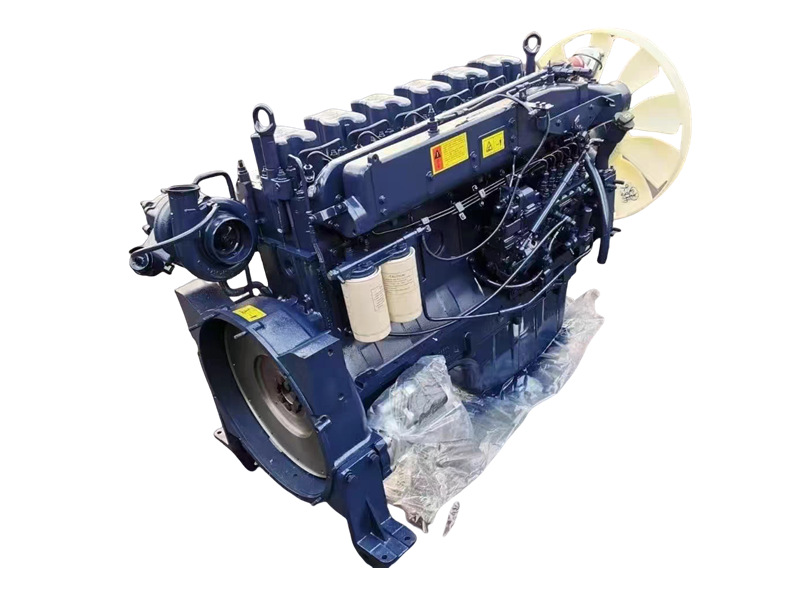

Brand new, genuine weichai engineОн WP10.380E32 engine is a mainstay model in Weichai's WP10 series and is widely used in Beiben trucks. This 6-cylinder, 9.7-liter diesel engine employs turbocharged intercooling technology, with a rated power of 280 kW (380 hp). It delivers a robust torque of 1600 N·m within the 1500-1800 rpm range, providing ample power reserves. Its full-load minimum fuel consumption rate is only 196 g/kW·h, demonstrating outstanding fuel economy. The engine boasts a compact overall structure, comes standard with an efficient exhaust brake, and offers extended oil change intervals to further reduce maintenance costs.
» Ⅰ. Product Defination and Introduction:
Supplier: CEEC TRUCKS
▶ Engine Model: WP10.380E32
▶ Engine Brand: Weichai
▶ Engien Power: 280KW/380HP
▶ Displacement: 9726 ml
» Ⅱ. Product Specifications:
|
Engine Model |
WP10.380E32 |
|
Engine Brand |
Weichai |
|
Engine Series |
WP10 Series |
|
Manufacturer |
Weichai Power Co., Ltd. |
|
Applicable Scope |
Truck Use |
|
Air Intake Form |
Turbocharged Intercooled |
|
Number of Cylinders |
6 |
|
Fuel Type |
Diesel |
|
Cylinder Arrangement |
In-line |
|
Displacement |
9.726L |
|
Emission Standard |
Euro III |
|
Maximum Output Power |
280kW |
|
Rated Speed |
2200rpm |
|
Maximum Horsepower |
380HP |
|
Maximum Torque |
1600N.m |
|
Maximum Torque Speed Range |
1500-1800rpm |
|
Full Load Minimum Fuel Consumption Rate |
196g/kW.h |
|
Engine Type |
Water-cooled, Four-stroke, with Exhaust Valve Brake, Direct Injection, Turbocharged Intercooled |
|
Net Engine Weight |
875kg |
|
Engine Dimensions |
1525×730×1063mm |
|
Noise Level at One Meter |
104dB |
|
Bore × Stroke |
126x130mm |
|
Number of Valves per Cylinder |
4 |
|
Firing Order |
1-5-3-6-2-4 |
» Ⅲ. Product Advantages:

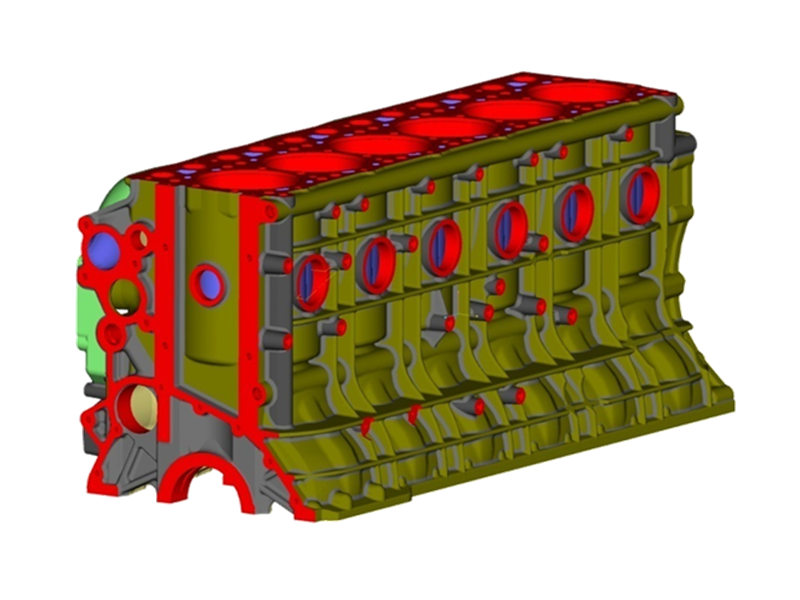

Cylinder Block
The frame-type main bearing structure ensures high engine strength and low noise levels.

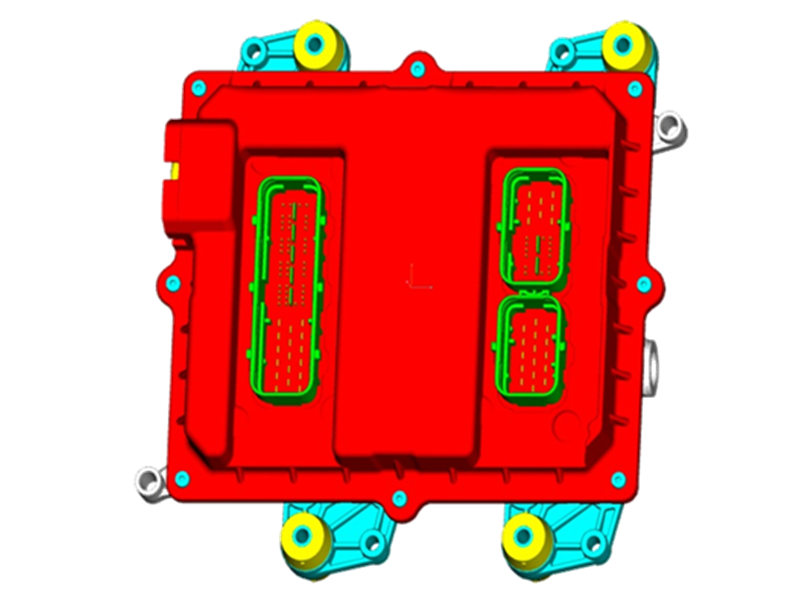

Electronic Control Unit
Equipped with a Bosch electronic control unit, providing stable system processing capabilities. It features multi-level system protection and error correction measures, enabling free communication with the vehicle's electronic control unit.

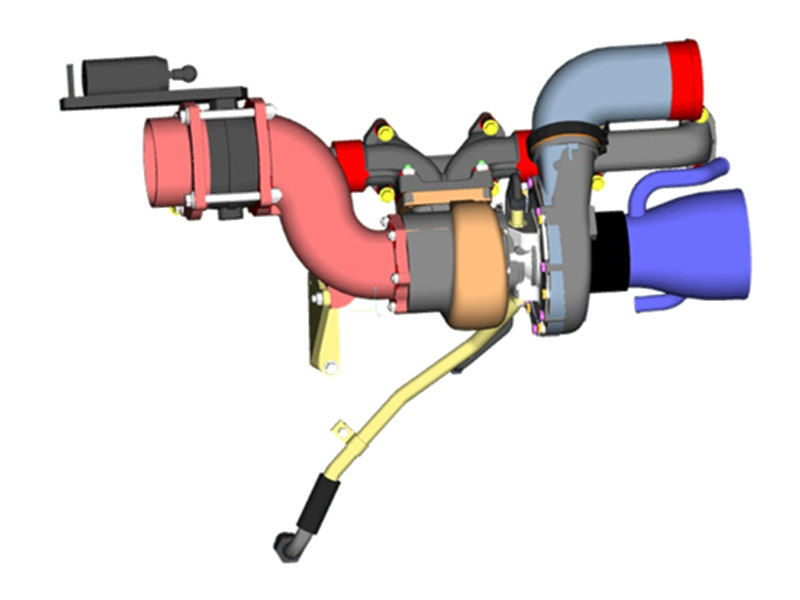

Intake and Exhaust System
The turbocharger is centrally mounted. An electronically heated flange replaces the flame preheating starting device, effectively addressing the issue of white smoke emission during cold starts in winter.

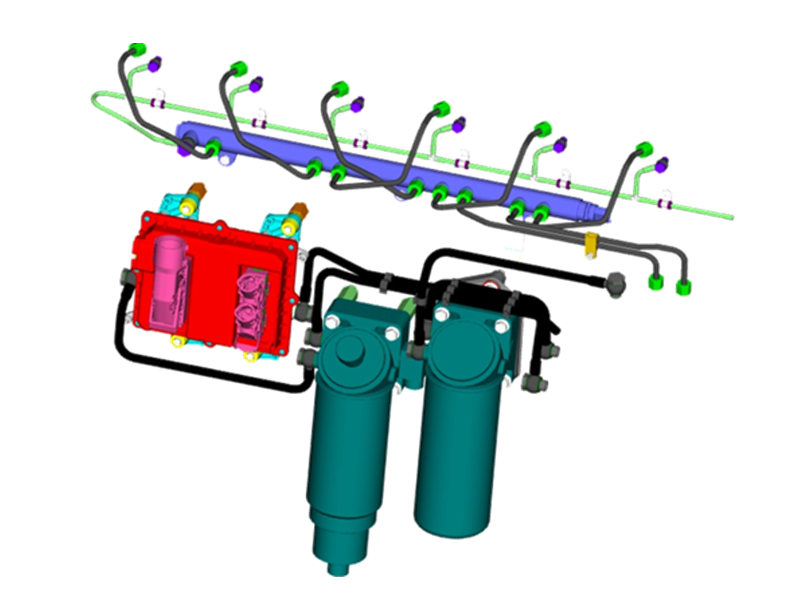

Fuel Injection and Supply System
Utilizes a Bosch high-pressure common rail fuel pump capable of providing injection pressures up to 1600 bar. This enables flexible control over fuel quantity and timing, achieving low emissions and low fuel consumption.

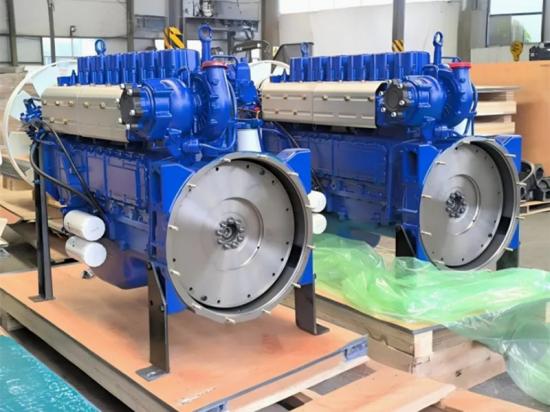

» Ⅳ. Product Details:
|
|
|
|
